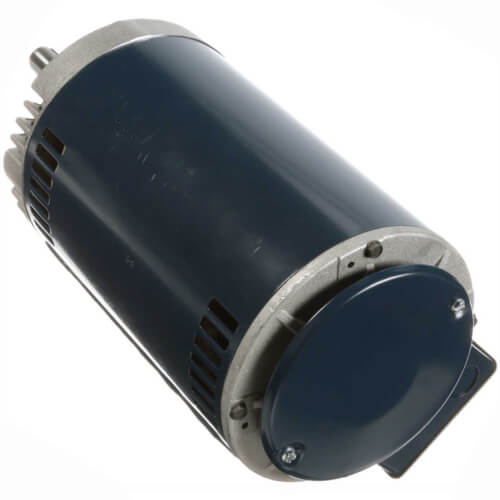

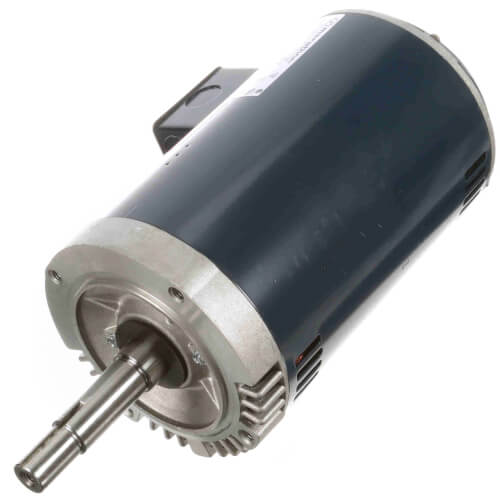

Close-Coupled Pump Motor - 1 HP, 1760 RPM, 3 PH (208-230/460V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
'/%3E%3C/svg%3E)
Hover image to zoom
Close-Coupled Pump Motor - 1 HP, 1760 RPM, 3 PH (208-230/460V)
$517.01 each
In Stock
Get 1 Tue, Feb 14
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208-230/460v, 208v
1760 RPM
Reversible
1 HP
Round
3.2-3.0/1.5, 3.2, 1.5 Amps
Description
–
Close-Coupled Pump Motor - 1 HP, 1760 RPM, 3 PH (208-230/460V)
Features:
Features:
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- Inverter Duty 10:1 Variable Torque and 2:1 Constant Torque
- Nameplated 60/50 hertz, 190/380 volts at next lower HP
- F1 mounting only, cannot reassemble to F2
- Standard assembly F1, reversible to F2 assembly
Specs
–
| Type: | Close-Coupled Pump |
|---|---|
| RPM: | 1760 |
| Amperage: | 3.2-3.0/1.5 3.2 1.5 |
| Horse Power: | 1 |
| Voltage: | 208-230/460v 208v |
| Phase: | 3 |
| Mount: | Round |
| Frame: | 143JMV |
| Bearings: | Ball |
| Rotation: | Reversible |
| Enclosure Type: | Drip Proof |
| Motor: | Squirrel Cage Inverter |
| Poles: | 4 |
| Duty: | Continuous |
| Speeds: | 1 |
| Max Ambient Temp (°F): | 104°F |
| Insulation Class: | F |
| Overload Protection: | None |
| Motor Orientation: | Horizontal Or Shaft Down |
