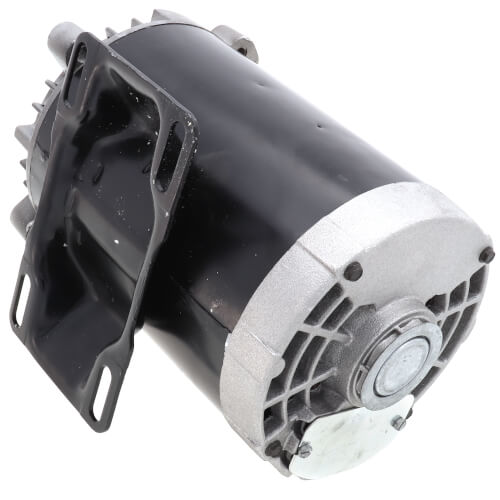

Main product image of Motor - 56FR, 1/2 HP, 1725 RPM, 3 PH, CCW/CW (115V)
Magnifying glass
Hover image to zoom

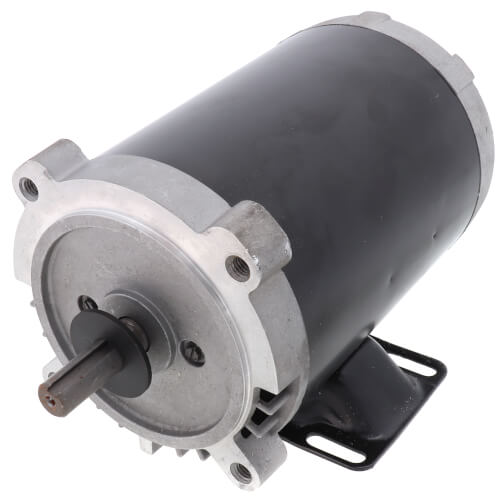

Motor - 56FR, 1/2 HP, 1725 RPM, 3 PH, CCW/CW (115V)

Brand:
Marathon Motors
SKU:
H286ES
Rating:
(0)
Q&A:
(0)
Motor - 56FR, 1/2 HP, 1725 RPM, 3 PH, CCW/CW (115V)
Magnifying glass
Hover image to zoom
$84.89 each
In Stock
In Stock
Get 1 Tomorrow, Jul 8
Order by 2PM, receive Tomorrow
This item replaces: H286
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
115V
Product Highlight: Rotation
CW/CCW
Product Highlight: Horse Power
1/2 HP
Product Highlight: Mount
Resilient Base

Description

–
Fan & Blower Motor - 1/2 HP, 1725/1140 RPM, 3 PH, CCW (115V)

Specification:
  • Frequency: 60 Hz
  • Voltage: 115 V
  • Current: 9.3 A
  • Speed: 1725 RPM
  • Service Factor: 1.25
  • Phase: 3
  • Efficiency: 59.5 %
  • Duty: Continuous
  • Insulation Class: B
  • Ambient Temperature: 40 °C
  • Rotation: Counterclockwise/Clockwise
  • Mounting: Resilient Base
  • Frame: 56
  • Enclosure: Drip Proof

Specs

–
Type:

Motor

Horse Power:

1/2

Voltage:

115V

Phase:

3

Mount:

Resilient Base

Frame:

56

Bearings:

Ball

Rotation:

CW/CCW

Enclosure Type:

Drip Proof

Motor:

Split Phase

Duty:

Continuous

Poles:

4

Frequency:

60 Hz

Max Ambient Temp (°F):

104°F

Insulation Class:

B

Motor Orientation:

Any

Overload Protection:

None
