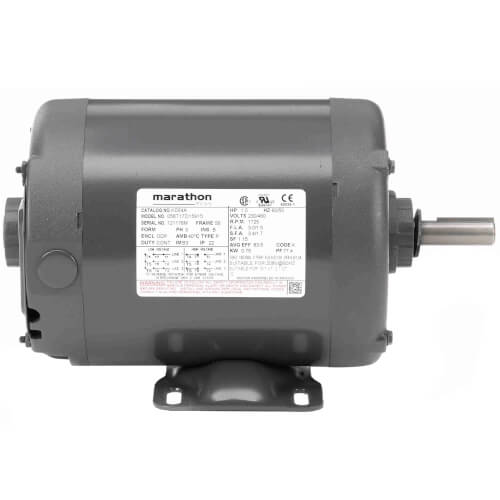

Main product image of General Purpose Motor - 1 HP, 1800 RPM, 3 PH (230/460V)

Hover image to zoom

General Purpose Motor - 1 HP, 1800 RPM, 3 PH (230/460V)

Name: General Purpose Motor - 1 HP, 1800 RPM, 3 PH (230/460V)
Brand: Marathon Motors
SKU: K004A
Price: 462.92 USD
Availability: OutOfStock

Brand:

Marathon Motors

SKU:

K004A

Rating:

(0)

Q&A:

(0)

General Purpose Motor - 1 HP, 1800 RPM, 3 PH (230/460V)

Hover image to zoom

K004A has been discontinued

Discontinued September 29, 2025

This product was discontinued by the manufacturer.

MANUALS (1)

User Guide

Direct Replacement:

1 hp 1800 Rpm, 56h, Open Drip Proof Electric Motor, K004

Brand:

US Motors

SKU:K004

(0)

Out of Stock

Get it Wed, Nov 4 - Wed, Nov 11

VIEW REPLACEMENT

Product Highlights

–

230/460v

1725 RPM

Reversible

1 HP

Resilient Base

3 Amps

Description

–

General Purpose Motor - 1 HP, 1800 RPM, 3 PH (230/460V)

Features:

EISA compliant efficiencies, as noted
Ball bearings (except where noted)
NEMA Service Factors
Will accept C-Face Kits, see Accessories Section (except as noted)
UL Recognized and CSA Certified

***Note: Image may not be actual representation of item.

Specs

–

Type:	General Purpose
RPM:	1725
Amperage:	3
Horse Power:	1
Voltage:	230/460v
Phase:	3
Frame:	56
Mount:	Resilient Base
Bearings:	Ball
Rotation:	Reversible
Enclosure Type:	Drip Proof
Motor:	Squirrel Cage Induction Run
Poles:	4
Duty:	Continuous
Speeds:	1
Insulation Class:	B
Max Ambient Temp (°F):	104°F
Motor Orientation:	Horizontal
Overload Protection:	None
