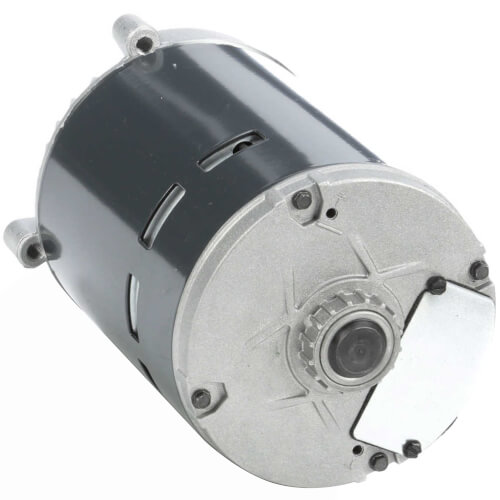

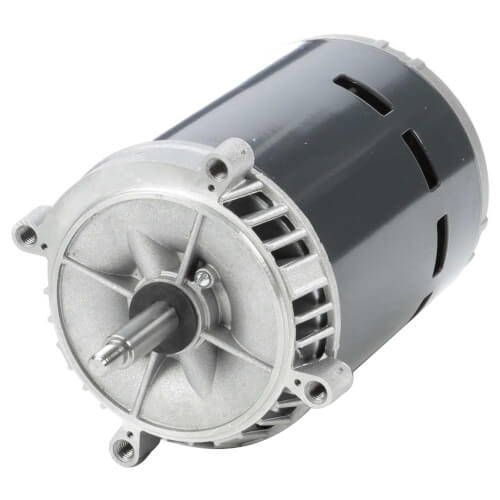

Centrifugal Pump Motor - 1/2 HP, 3600 RPM, 3 PH (208-230/460V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
K217 has been discontinued
Discontinued June 14, 2023
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
208-230/460v
3450 RPM
CW/CCW
1/2 HP
Round
Description
–
Centrifugal Pump Motor - 1/2 HP, 3600 RPM, 3 PH (208-230/460V)
Features:
***Note: Image may not be actual representation of item.
Features:
- Service Factor, as noted
- Double sealed ball bearings, mechanically locked on shaft end
- Continuous Duty
- Nameplated 60/50 hertz, 190/380 volts at next lower HP, as noted
- 56C = carbon steel shaft with key
- 56J = 416 stainless steel threaded shaft with slinger
- UL Recognized and CSA Certified
- Drip cover not included, see Accessories section
***Note: Image may not be actual representation of item.
Specs
–
| Type: | Centrifugal Pump |
|---|---|
| RPM: | 3450 |
| Horse Power: | 1/2 |
| Voltage: | 208-230/460v |
| Phase: | 3 |
| Mount: | Round |
| Bearings: | Ball |
| Frame: | 56J |
| Rotation: | CW/CCW |
| Enclosure Type: | Drip Proof |
| Motor: | 3-Phase |
| Duty: | Continuous |
| Poles: | 2 |
| Speeds: | 1 |
| Insulation Class: | B |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Any |
| Overload Protection: | None |
