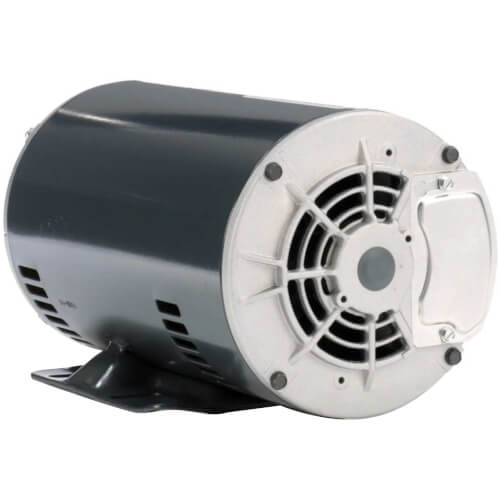

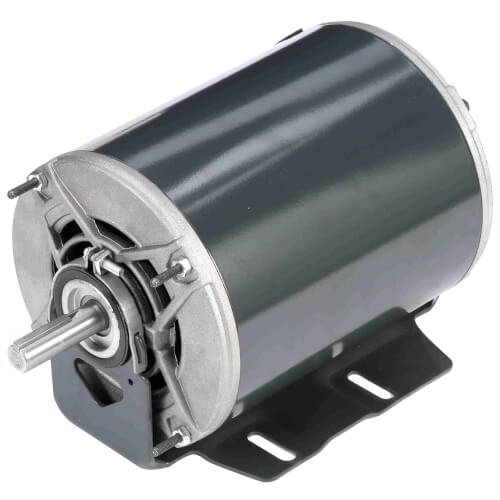

Fan & Blower Motor - 3/4 HP, 1800/1200 RPM, 3 PH (460V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$782.08 each
In Stock
Get 12 Wed, Jul 8
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
460v
1140, 1725/1140, 1725 RPM
CW/CCW
3/4 - 1/4, 3/4, 1/4 HP
Resilient Base
Description
–
Fan & Blower Motor - 3/4 HP, 1800/1200 RPM, 3 PH (460V)
Features:
***Note: Image may not be actual representation of item.
Features:
- Single and two-speed models, as noted
- Variable torque on two speed ratings
- Ball bearings
- Heavy gauge steel frame and base
- Thermal protection, as noted
- Service Factor, as noted
- Nameplated 60/50 Hz at next lower horsepower (except as noted)
- Patented VCD, Voltage Change Device where footnoted "VC"
- UL Recognized and CSA Certified
***Note: Image may not be actual representation of item.
Specs
–
| Type: | Fan & Blower |
|---|---|
| RPM: | 1140 1725/1140 1725 |
| Horse Power: | 3/4 - 1/4 3/4 1/4 |
| Voltage: | 460v |
| Phase: | 3 |
| Mount: | Resilient Base |
| Bearings: | Ball |
| Rotation: | CW/CCW |
| Frame: | 56 |
| Enclosure Type: | Drip Proof |
| Motor: | 3-Phase |
| Poles: | 4 |
| Duty: | Continuous |
| Speeds: | 2 |
| Max Ambient Temp (°F): | 104°F |
| Insulation Class: | B |
| Overload Protection: | None |
| Motor Orientation: | Any |
