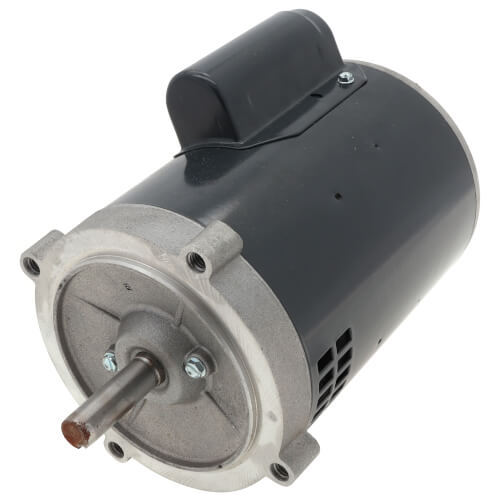

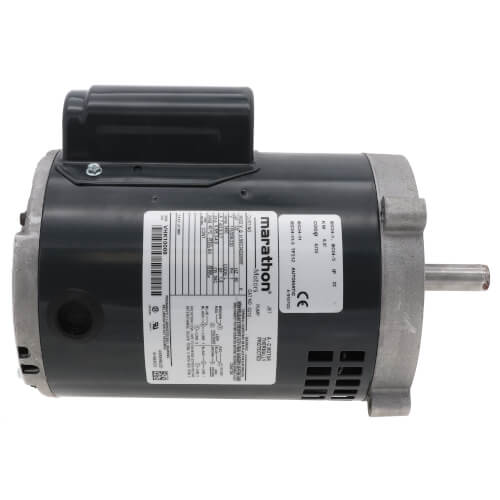

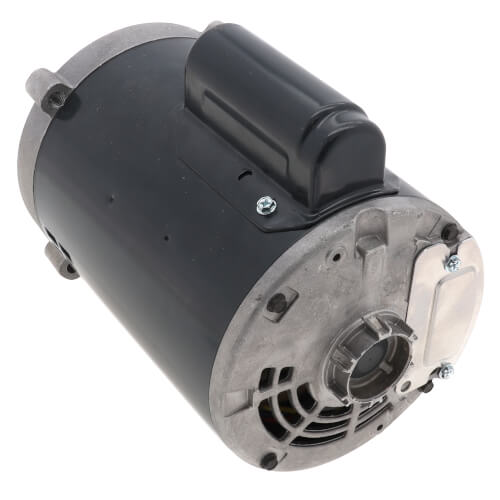

Oil Burner Motor - 1/2 HP, 3600 RPM, 1 PH, Selective CCW (115/208-230V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$250.46 each
In Stock
Get 2 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115/208-230v
3450 RPM
Selective CCW
1/2 HP
Round
Description
–
Oil Burner Motor - 1/2 HP, 3600 RPM, 1 PH, Selective CCW (115/208-230V)
Features:
Features:
- Ball Bearings
- Manual or automatic reset thermal
- Split Phase and capacitor start designs protector
- NEMA 56C direct mounting
- NEMA Jet Pump Service Factors
- Moderate starting torque
- UL Recognized and CSA Certified
Specs
–
| Type: | Oil Burner |
|---|---|
| RPM: | 3450 |
| Horse Power: | 1/2 |
| Voltage: | 115/208-230v |
| Phase: | 1 |
| Mount: | Round |
| Rotation: | Selective CCW |
| Bearings: | Ball |
| Frame: | 56C |
| Enclosure Type: | Drip Proof |
| Motor: | Capacitor Start/Induction Run |
| Poles: | 2 |
| Duty: | Continuous |
| Speeds: | 1 |
| Max Ambient Temp (°F): | 104°F |
| Insulation Class: | B |
| Motor Orientation: | Horizontal |
| Overload Protection: | Automatic |
