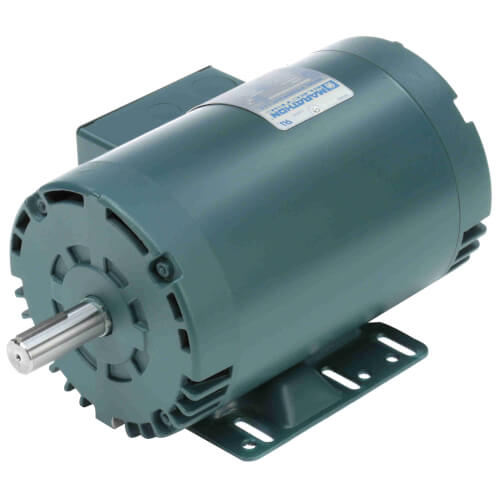

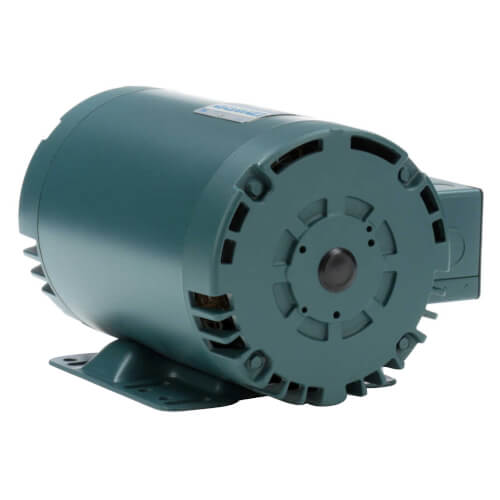

XRI General Purpose Motor - 1-1/2 HP, 1800 RPM, 3 PH (208-230/460V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$621.42 each
Backorder
This item replaces: U759
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
230/460v
1750 RPM
Reversible
1-1/2 HP
Resilient Base
Description
–
General purpose use on compressors, pumps, conveyors, blowers, and other machinery in environments that are relatively clean and dry. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra Return on your Investment when using these premium efficiency motors on high cycle or long run time applications.
Features:
***Note: Image may not be actual representation of item.
Features:
- Meets or exceeds NEMA Premium efficiencies NEMA Premium models are in compliance with EISA2007
- Motors are suitable for 10:1 VT on all frame sizes and 10:1 CT up to 365T frame (Except where noted)
- 1.15 Service Factor
- Normally closed thermostats, as noted
- Class F Insulation
- Nameplated 60/50 hertz
- UL Recognized, CSA Certified and CE Marked
- Three year warranty
***Note: Image may not be actual representation of item.
Specs
–
| Type: | XRI |
|---|---|
| RPM: | 1750 |
| Horse Power: | 1-1/2 |
| Voltage: | 230/460v |
| Phase: | 3 |
| Mount: | Resilient Base |
| Bearings: | Ball |
| Rotation: | Reversible |
| Frame: | 145T |
| Enclosure Type: | Drip Proof |
| Motor: | Squirrel Cage Inverter |
| Poles: | 4 |
| Duty: | Continuous |
| Speeds: | 1 |
| Max Ambient Temp (°F): | 104°F |
| Insulation Class: | F |
| Motor Orientation: | Horizontal |
| Overload Protection: | None |
