Direct Drive Fan & Blower Motor - 1/2 HP, 1625 RPM, 1 PH, Selective CCW (115V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$240.89 each
In Stock
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1625 RPM
Selective CCW
1/2 HP
Resilient Ring - Extended Studs
7.4 Amps
Description
–

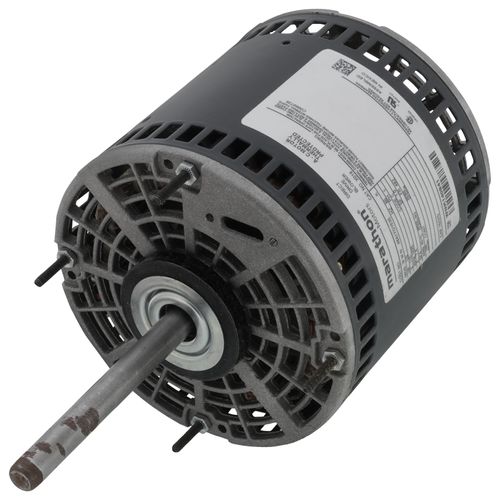

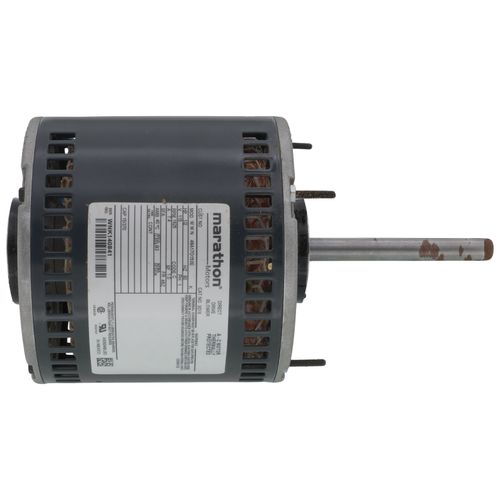

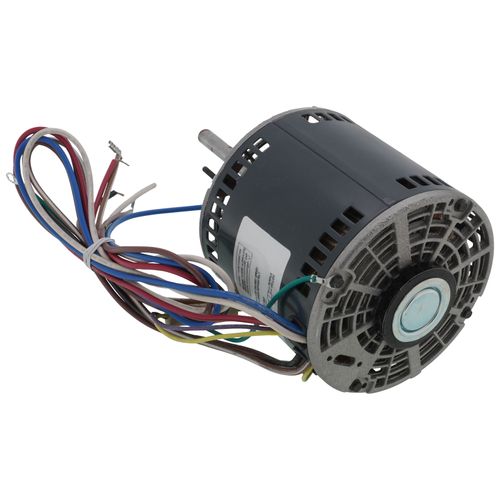

Direct Drive Fan & Blower Motor - 1/2 HP, 1625 RPM, 1 PH, Selective CCW (115V)
Features:
***Note: Image may not be actual representation of item.
Features:
- Open frames and brackets (except X011 and X012 have enclosed shaft end bracket)
- Single and multi-speed models as noted
- Grommeted lead exit
- Weather resistant reversing plug
- 2-1/4" resilient ring mounting except where noted (base not included, see Accessories section)
- 2 1/2" adapter rings supplied, shipped loose in box
- Extended thru-bolts on shaft end
- 30" long leads
- Automatic reset thermal protector
- Ball bearings
- UL Recognized and CSA Certified
- Capacitor not included, see Accessories section
***Note: Image may not be actual representation of item.
Specs
–
| Type: | Fan & Blower |
|---|---|
| RPM: | 1625 |
| Amperage: | 7.4 |
| Horse Power: | 1/2 |
| Voltage: | 115V |
| Phase: | 1 |
| Mount: | Resilient Ring - Extended Studs |
| Rotation: | Selective CCW |
| Bearings: | Ball |
| Frame: | 48Z |
| Enclosure Type: | Open Air Over |
| Motor: | Permanent Split Capacitor |
| Duty: | Continuous |
| Poles: | 4 |
| Speeds: | 3 |
| Insulation Class: | B |
| Max Ambient Temp (°F): | 104°F |
| Motor Orientation: | Horizontal |
| Overload Protection: | Automatic Lock Rotor Only |
