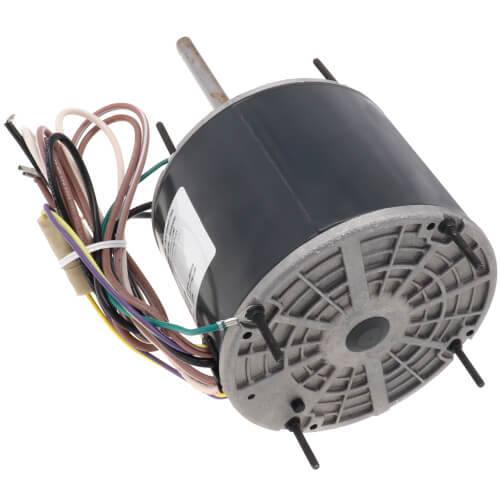

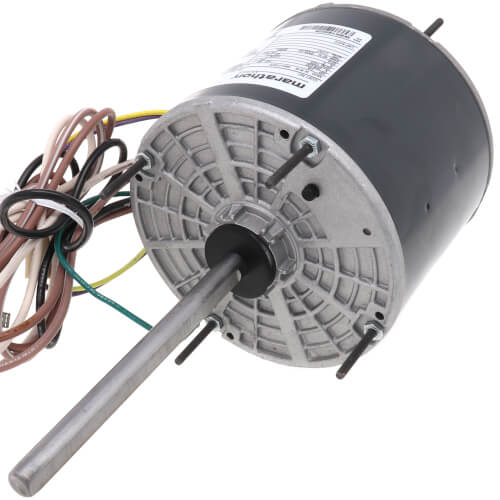

Condenser Fan & Heat Pump - 1/4 HP, 1625 RPM, 1 PH, Selective CCW (208-230V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$248.84 each
In Stock
Order by today, receive Tuesday
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1625 RPM
Selective CCW
1/4 HP
Round - Extended Studs
2 Amps
Description
–
Direct drive condenser fans for all angle mounting.These motors need to be mounted within the airflow of the fan for proper cooling.
Features:
Features:
- Frame and end brackets enclosed
- Single and multi-speed models, as noted
- Ball bearings (except as noted)
- Weather resistant reversing plug
- 30" long leads
- Shaft slinger
- 1-1/2" Thru-bolts on shaft end, 1" thrubolts on lead end (except as noted)
- Automatic reset thermal protector
- Weep holes with removable plugs on end brackets. Remove bottom plug after installation.
- Lug mount kits and other accessories available (see Accessories section)
- 60°C ambient, as noted
- UL Recognized and CSA Certified
- Capacitor not included, see Accessories section
Specs
–
| Type: | Condenser Pump |
|---|---|
| RPM: | 1625 |
| Amperage: | 2 |
| Horse Power: | 1/4 |
| Voltage: | 208/230V |
| Phase: | 1 |
| Mount: | Round - Extended Studs |
| Rotation: | Selective CCW |
| Bearings: | Ball |
| Frame: | 48Y |
| Enclosure Type: | Totally Enclosed Air Over (TEAO) |
| Motor: | Permanent Split Capacitor |
| Duty: | Continuous |
| Poles: | 4 |
| Speeds: | 1 |
| Max Ambient Temp (°F): | 104°F |
| Insulation Class: | B |
| Motor Orientation: | Horizontal |
| Overload Protection: | Automatic Lock Rotor Only |
