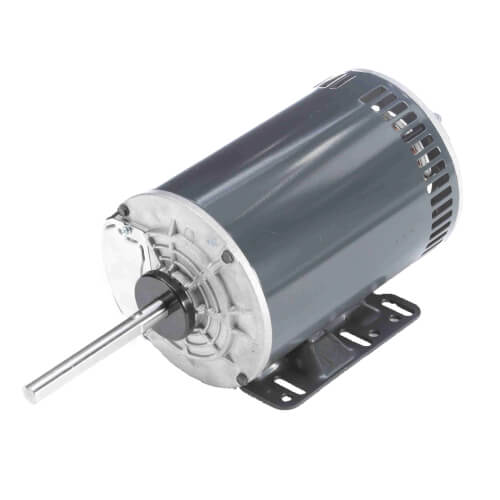

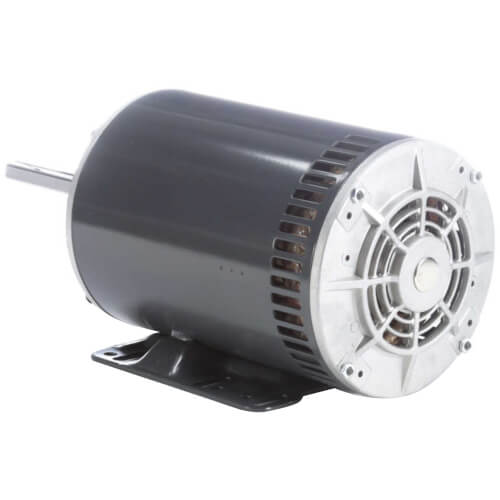

Main product image of Condenser Fan & Heat Pump - 1-1/2 HP, 1140 RPM, 3 PH, Reversible (208-230/460V)
Magnifying glass
Hover image to zoom

Condenser Fan & Heat Pump - 1-1/2 HP, 1140 RPM, 3 PH, Reversible (208-230/460V)

Brand:
Marathon Motors
SKU:
X523
Rating:
(0)
Q&A:
(0)
Condenser Fan & Heat Pump - 1-1/2 HP, 1140 RPM, 3 PH, Reversible (208-230/460V)
Magnifying glass
Hover image to zoom
$506.66 each
In Stock
In Stock
Get 32 Tue, Aug 11
Order by today, receive Tuesday

MANUALS (2)

User Guide
User Guide
User Guide
User Guide
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Voltage
208-230/460v
Product Highlight: RPM
1140 RPM
Product Highlight: Rotation
Reversible
Product Highlight: Horse Power
1-1/2 HP
Product Highlight: Mount
Resilient Base

Description

–

Commercial condenser fans may be installed outdoors. These motors need to be mounted within the airflow of the fan for proper cooling. Used on Trane, Carrier, Climtrol and York units, 5 tons and larger


Features:

  • 70°C ambient (except as noted)
  • Enclosed shaft end bracket, vented frame
  • Continuous duty, air over
  • Automatic reset thermal protector
  • Shaft slinger
  • Threaded lead exit
  • Nameplated 60/50 hertz 190/380 volts, at next lower HP
  • Double sealed ball bearings
  • Flat and keyway on shaft
  • Patented VCD - Voltage Change Device (as noted)
  • Ball Bearings
  • UL Recognized and CSA Certified


***Note: Image may not be actual representation of item.

Specs

–
Type:

Condenser Pump

RPM:

1140

Horse Power:

1-1/2

Voltage:

208-230/460v

Phase:

3

Mount:

Resilient Base

Rotation:

Reversible

Bearings:

Ball

Frame:

56HZ

Enclosure Type:

Open Air Over

Motor:

Squirrel Cage Induction Run

Poles:

6

Duty:

Continuous

Speeds:

1

Insulation Class:

H

Max Ambient Temp (°F):

158°F

Motor Orientation:

Horizontal

Overload Protection:

Automatic Lock Rotor Only
