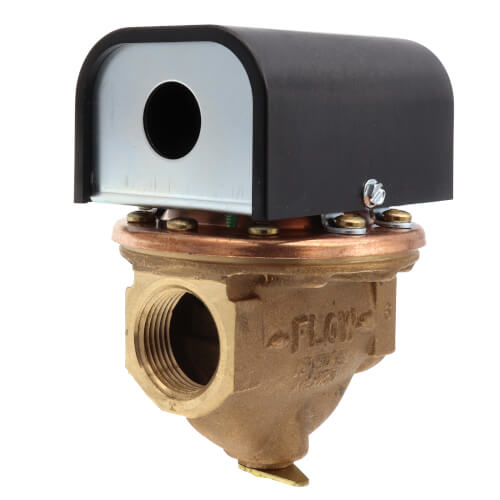

FS6-1, 1" Flow Switch-High Sensitivity
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$470.16 each
Backorder
Get it Tue, Jul 7 - Tue, Jul 14
MANUALS (3)
This item replaces: FS6-1
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1"
7.4 Amps
120v, 240v
100 MAX PSI
32°F - 225°F
Description
–
For heavy duty applications where high sensitivity is required, such as water treatment systems, cooling systems for electronic circuits, compressors, booster pumps, and bearings, and other applications that need instant switching.
Features
Optional Feature
Features
- In-line configuration eliminates need for a pipe tee
- Very high flow capacity
- Actuates at extremely low flow rate
- Sizes available: 3/4" NPT, 1" NPT
- Single pole, double throw snap switch
- Switch compartment is completely sealed to protect it from the liquid
- Sensitivity adjusting screw makes flow adjustment easy
Optional Feature
- BSPT threads
- Minimum temperature (fluid or ambient) 32 Deg. F (0 Deg. C)
- Maximum temperature 225 Deg. F (107 Deg. C)
- Maximum operating pressure 100 psi (7 kg/cm2)
Specs
–
| Size: | 1" |
|---|---|
| Application: | Liquid Flow |
| Type: | High Sensitivity |
| Min Flow (FPM): | 0.12 |
| Max Flow (FPM): | 2.5 |
| Flow Rate: | 0.12-2.5 GPM |
| Amperage: | 7.4 |
| Voltage: | 120v 240v |
| Max Pressure (PSI): | 100 |
| Switch: | SPDT |
| Hertz: | 60 50 |
| Temperature Range (F): | 32°F - 225°F |
