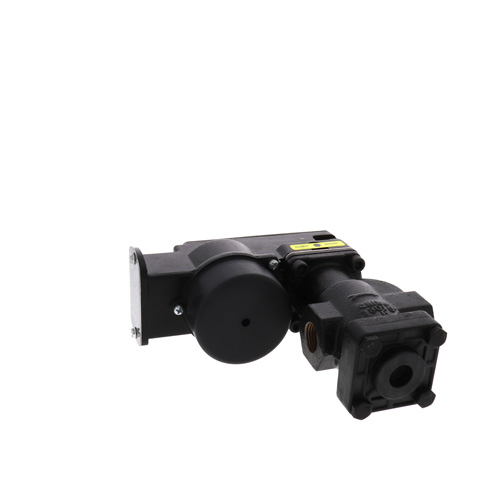

101A-120V, 120V Electric Water Feeder
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$511.00 each
In Stock
Get 8 Tomorrow, Jun 9
Order by 6PM, receive Tomorrow
MANUALS (3)
This item replaces: 101A-120V
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
150 MAX PSI
120v
7.5625"
6-7/8" Width
Threaded Connection
1/2"
Description
–
Overview:
- For low pressure steam boilers with cold water feed
- Eliminates necessity to manually add water to the boiler
- Can be used with mechanical or electronic low water cut-off controls
- Quick-change replaceable cartridge valve and strainer
- Manual feed button
- Model 101-A features a 120 VAC solenoid
- Model 101-A-24 features a 24 VAC solenoid and a separate 50 VA transformer
- Maximum water supply pressure 150 psi (10.5 kg/cm sq.)
- Maximum boiler pressure 25 psi (1.8 kg/cm sq.)
- Maximum inlet water temperature 120 degrees F (49 degrees C)
- Maximum power consumption: 40 VA at 24 VAC, 40 VA at 120 VAC
Specs
–
| Application: | Steam Boilers |
|---|---|
| Type: | Electronic |
| Max Pressure (PSI): | 150 |
| Max Vessel Pressure: | 25 psi |
| Reset Type: | Automatic |
| Max Inlet Water Temp (F): | 120°F |
| Voltage: | 120v |
| Height: | 7.5625" |
| Width (Inches): | 6-7/8" |
| Feed Rate: | 1 |
| Max Ambient Temp (°F): | 100°F |
| Max Power Consumption: | 40 VA |
| Connection Type: | Threaded |
| Size: | 1/2" |
