Description
Overview

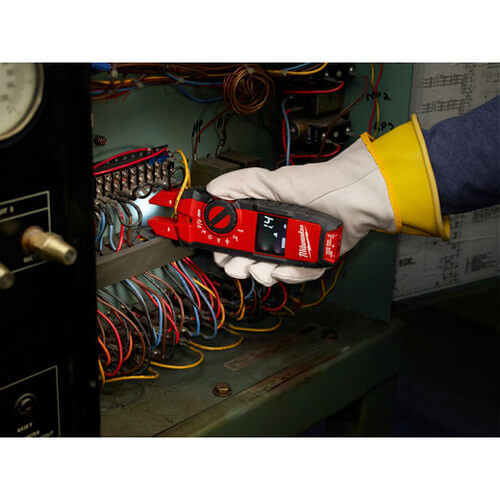

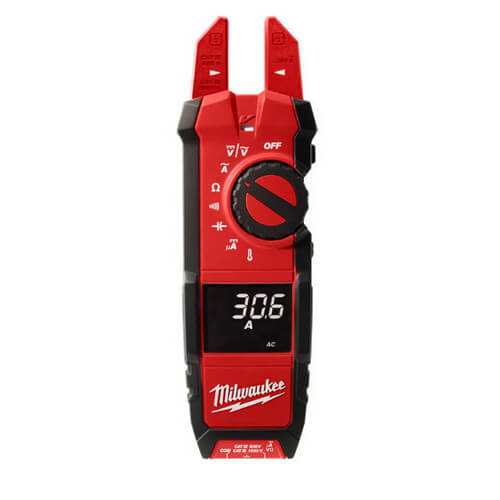

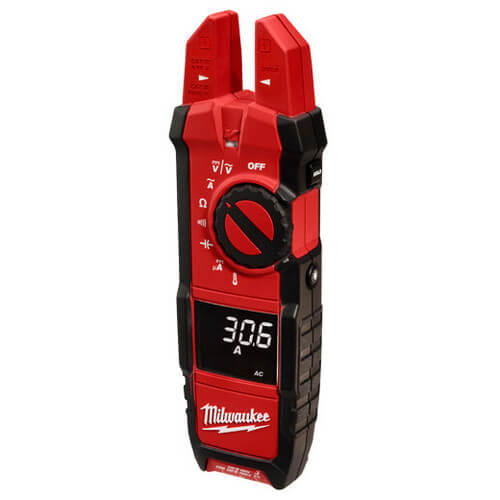

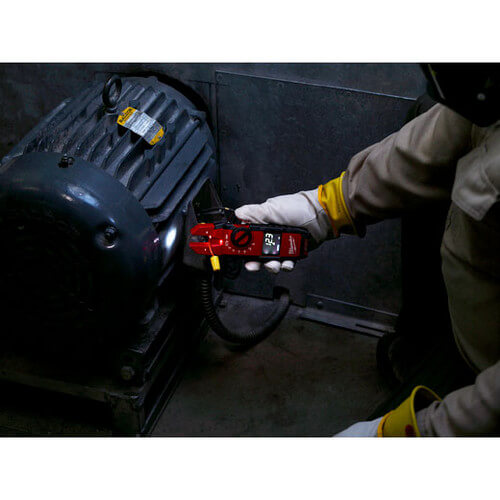

The Milwaukee Fork Meter for HVAC/R is a heavy duty True-RMS electrical tester for professional residential, commercial and industrial applications. The 2206-20 is five tools in one providing current measurement, temperature measurement, voltage measurement, voltage detection and task lighting. In addition, the new tool provides a wide 0.63" fork opening, high 200 amp current range and a high contrast white-on-black display. Covered by Milwaukee 5-Year Warranty.

Features
  • Measures up to 200 amps, Wide 0.63" jaw opening
  • Wide voltage range to 1000 volts AC /DC
  • True-RMS for accurate measurement in all applications
  • Built-in voltage detector and LED work light
  • Thermocouple (dual banana) input for contact temperature measurement
  • 600 uA DC for Flame Rectification
  • High contrast, white on black display with backlight for easy reading
  • Rugged over-molding increases durability and user grip
Includes
  • 2206-20 Fork Clamp
  • Test Leads
  • Dual Banana Thermocouple
  • (2) AA Batteries
  • Manual
Hide Description
Specs
Product Type:

Fork Meter

Voltage Range:

1000V AC/DC

AC Amps:

200

mV DC:

Same as VDC (no switch function)

uA DC:

600

Ohms:

600.0 Ohm-40.00M Ohm

Temperature Range:

-40° to 752°F

Safety Category Rating:

CAT IV 600V / CAT III 1000V

Fork Opening:

0.63"

Switch:

Dial

Display:

High contrast white on black

Features:

Rugged overmolding

Backlight

Indication:

Visual

Features:

Dual banana thermocouple input

LED Work Light

Non-Contact Voltage:

Yes

TRMS:

Yes

Lo-Z:

No

Auto Calibration:

No (Recommend sending in for calibration service once every year)

Continuity:

Yes

Hold:

Yes

Capacitance:

Yes

Battery Type:

Alkaline (2 AA Included)

Length (Inches):

8"

Warranty:

5 Year

×
