Description
Overview

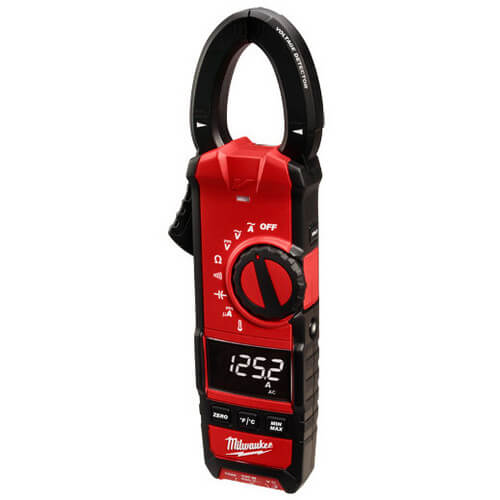

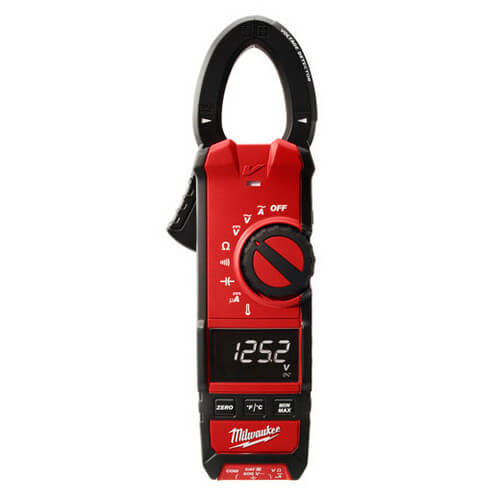

The Milwaukee Clamp Meter for HVAC/R is a heavy duty True-RMS electrical current tester for professional residential, commercial, and industrial applications. The perfect tool for the professional HVAC/R technician, the 2236-20 Clamp Meter provides a wide 1.3" jaw opening to easily handle large conductors, a thin jaw profile for access to tight spaces and a high contrast white-on-black display for clearer readings. In addition, the Milwaukee Clamp Meter for HVAC/R was designed with embedded non-contact voltage detection and an LED work light to increase end user productivity. Covered by Milwaukee 5-Year Warranty.

Features
  • Measures up to 600 amps AC, large 1.30" jaw opening
  • Thin jaw profile for easier wire measurement in panels or in bundles
  • Wide voltage range to 600 AC/DC volts
  • True-RMS for accurate measurement in all applications
  • Built-in voltage detector and LED work light
  • Thermocouple (dual banana) input for contact temperature measurement
  • 600 uA DC for flame rectification
  • High contrast, white on black display with backlight for easy reading
  • Rugged over-molding increases durability and user grip
Includes
  • 2236-20 Clamp
  • Test Leads
  • Dual Banana Thermocouple
  • (2) AA Batteries
  • Manual
Hide Description
Specs
Product Type:

Clamp Meter

Voltage Range:

600V AC/DC

AC Amps:

600

AC Volts:

600

DC Volts:

600

mV DC:

Same as VDC (no switch function)

uA DC:

600

Ohms:

6000

Non-Contact Voltage:

Yes

Temperature Range:

-40° to 752°F

Jaw Width:

1.3"

Switch:

Dial

Display:

High contrast white on black

Features:

LED Work Light

Rugged overmolding

Dual banana thermocouple input

Backlight

Continuity:

Yes

Zero:

Yes

Safety Category Rating:

CAT III 600V

Capacitance:

Yes

TRMS:

Yes

Hold:

Yes

Battery Type:

Alkaline (2 AA Included)

Indication:

Visual

Auto Calibration:

No (Recommend sending in for calibration service once every year)

Length (Inches):

9-1/2"

Warranty:

5 Year

×
