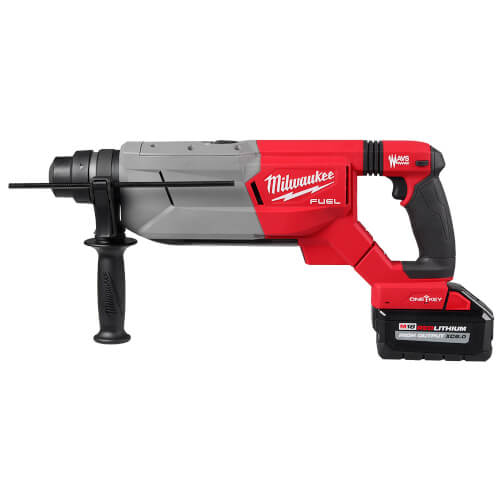

M18 Fuel 1-1/4" SDS Plus D-Handle Rotary Hammer Kit w/ ONE-KEY
Hover image to zoom

M18 Fuel 1-1/4" SDS Plus D-Handle Rotary Hammer Kit w/ ONE-KEY

Brand:
Milwaukee
SKU:
2916-22
Rating:
(0)
Q&A:
(0)
M18 Fuel 1-1/4" SDS Plus D-Handle Rotary Hammer Kit w/ ONE-KEY
Hover image to zoom
$749.00 each
Backorder
Backorder
Get it Tue, Apr 2 - Tue, Apr 30
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Size icon
1-1/4"
Warranty icon
5 Year Tool/3 Year Battery Warranty
Power Source icon
Cordless
RPM icon
810 RPM

Description

Overview:
The M18 FUEL™ 1-1/4” SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™ delivers on the drill speeds normally associated with SDS Max rotary hammers. The hammer drills Faster ¾” Holes and is Lighter Versus SDS Max rotary hammers, includes AUTOSTOP™ Control for Enhanced Safety, and can drill up to (25) ¾” x 4” Holes per Charge when paired with our M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery. Our in-line D-Handle design allows access in tight spaces and provides superior balance and ergonomics for downward drilling. Our POWERSTATE™ Brushless Motor delivers 3.65 ft-lbs of impact energy, 810 RPM, and 4,650 BPM, providing the speed and power for the most demanding applications. This hammer provides maximum control and enhanced safety with the AUTOSTOP™ Kickback Control, preventing over-rotation if the tool binds up while drilling in concrete with rebar or hard aggregate. This tool is compatible with our M18 FUEL™ HAMMERVAC™ 1-1/4” Dedicated Dust Extractor providing on-board OSHA Table One compliance. Our AVS Anti-Vibration System reduces vibration for maximum comfort. The cordless rotary hammer is compatible with ONE-KEY™ to track the tool’s location and manage inventory. The REDLINK PLUS™ intelligence tool technology ensures maximum rotary hammer performance and protects it from overload, overheating, and over-discharge. Our M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery delivers 50% more power while running 50% cooler than our M18™ REDLITHIUM™ XC batteries.

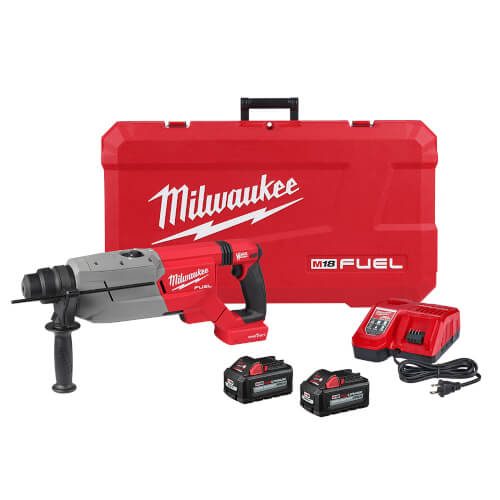

Includes
  • (1) M18 FUEL™ 1-1/4" SDS Plus D-Handle Rotary Hammer w/ ONE-KEY™(2916-20)
  • (2) M18 REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack (48-11-1865)
  • (1) M18™ & M12™ Rapid Charger(48-59-1808)
  • (1) Grease Tube
  • (1) Carrying Case
Product Features
  • POWERSTATE™ Brushless Motor delivers maximum power and long motor life
  • REDLINK PLUS™ Intelligence: Integrates full-circle communication between tool, battery and charger to protect from overloading, overheating, and over-discharging.
  • The M18™ REDLITHIUM™ HIGH OUTPUT™ XC6.0 Battery Pack provides 50% more power and runs 50% cooler vs M18™ REDLITHIUM™ XC battery packs
  • 3.65 ft-lbs Impact Energy
  • ONE-KEY™ technology allows for tracking, tool security, and inventory management
  • AVS Anti-Vibration System: Minimizes vibration for maximum comfort
  • 3 Mode: Rotary Hammer, Hammer Only, Rotary Only
  • 810 RPM
  • 4,650 BPM
  • Pairs with HAMMERVAC™ 1-1/4” Dedicated Dust Extractor (2916-DE)
  • Part of the M18™ system, featuring over 200+ solutions
Product Specifications
  • Voltage: 18V
  • Battery Type: 18 Volt Lithium Ion
  • Rotary Hammer Size: 1-1/4
  • Tool Warranty: 5 Year (Tool), 3 Years (Battery)
  • Power Source: Cordless
  • Motor Type: Brushless
  • Handle Type: D-Handle
  • Length: 18.3 in
  • Weight: 11.5 lb
  • Height: 7.3 in
  • Width: 3.6 in
  • Max Capacity: 1-1/4"
  • Impact Energy: 3.65 ft-lbs
  • Kickback Prevention: Yes
  • Anti-Vibration: Yes
  • Length w/ Battery: 19.6"
  • Weight w/ Battery: 11.5 lbs
  • Solid Bit Capacity: 1-1/4”
  • Thin Wall Core Bit Capacity: 2-1/2”
  • Brushless: Yes
  • Battery System: M18
  • Chuck Type: SDS Plus
  • Chuck Size: SDS-plus
  • BPM: 4650 bpm
  • Maximum RPM: 810 rpm
  • RPM Range: 0-800

Specs

Product Type:

Rotary Hammer

RPM:

810

Warranty:

5 Year Tool/3 Year Battery

Power Source:

Cordless

Size:

1-1/4"

Batteries Included:

2

Battery Type:

Lithium-Ion

Includes:

Charger

Carry Case
