M18 FUEL 5 CFM Vacuum Pump Kit

Milwaukee 2941-21 M18 FUEL 5 CFM Vacuum Pump Kit

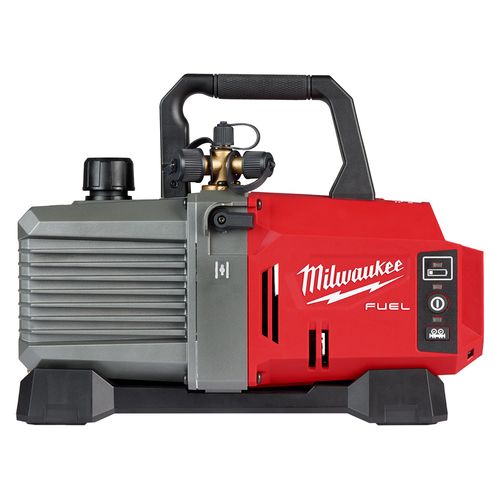

The Milwaukee 2941-21 M18 FUEL 5 CFM Vacuum Pump Kit is a cordless, two-stage rotary vane vacuum pump powered by the M18 battery system. This kit includes one M18 REDLITHIUM HIGH OUTPUT XC8.0 Battery and an M18 & M12 Rapid Charger, delivering instant power for fast evacuations without cords or generators.

Key Features & Benefits

• Cordless Operation: Eliminates the hassle of cords and provides instant power for evacuations without requiring generators or temporary power
• 5 CFM Air Flow: Delivers up to 20% higher air flow versus corded pumps for faster system pulldowns
• Manifold Mode: Maximizes speed and runtime in manifold setups, enabling up to 90 minutes of runtime per charge
• Default Mode Runtime: Provides up to 60 minutes of runtime per charge in default mode
• Ultimate Vacuum of 25 Microns: Achieves deep vacuum levels required for HVAC system evacuations
• POWERSTATE Brushless Motor: Enables corded speed during system pulldowns
• REDLINK PLUS Intelligence: Ensures maximum performance and protection from overload
• Three Port Sizes: Features 1/2", 3/8", and 1/4" ports for fast evacuations, especially with large hoses
• Internal Check Valve: Protects vacuum when pump is not running
• Ball Valve Isolation: Isolates the pump for easy battery changes without losing vacuum
• Gas Ballast Valve: Reduces frequency of oil changes
• Large Oil Fill Port: Eliminates the need for funnels during oil changes
• Low Battery Alert: Notifies audibly and visually when battery is running low
• A2L System Compatible: Suitable for use with A2L refrigerant systems
• 18V Lithium Ion Battery System: Compatible with M18 battery platform
• Voltage: 18V
• Power Source: Cordless
• Dimensions: 13.8" L x 10.4" H x 5.7" W
• Weight: 19 lbs
• Two-Stage Rotary Vane Pump Type: Professional-grade vacuum performance
• As fast as corded: Matches corded pump speed during system pulldowns
• Saves time setting up and tearing down: No need to locate outlets or run extension cords

Compatibility & Requirements

This pump operates on the M18 battery platform. The M18 REDLITHIUM HIGH OUTPUT XC8.0 Battery included provides optimal runtime, but other M18 batteries are compatible. Use 1/2", 3/8", or 1/4" vacuum hoses depending on the port configuration required for your evacuation setup. Installation and use should be performed by a qualified HVAC technician familiar with refrigerant system evacuation procedures and local codes.

Installation & Care

Fill the pump with vacuum pump oil through the large oil fill port before first use. Connect the appropriate vacuum hose to one of the three port sizes (1/2", 3/8", or 1/4"). Insert a charged M18 battery and turn on the pump. Use manifold mode for setups requiring extended runtime. Close the ball valve before removing the battery to isolate the pump and preserve vacuum. Monitor the low battery light and audible alert to know when to change the battery. Engage the gas ballast valve periodically to reduce moisture buildup and extend oil life. Change oil as needed based on usage and contamination level. Store the pump in a clean, dry location.

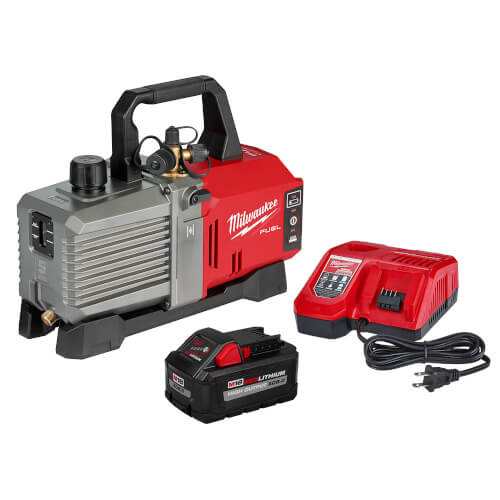

What's Included

• (1) M18 FUEL 5 CFM Vacuum Pump Kit (2941-21)
• (1) M18 REDLITHIUM HIGH OUTPUT XC8.0 Battery (48-11-1880)
• (1) M18 & M12 Rapid Charger (48-59-1808)

Warranty & Support

This product is covered by a 2-year tool warranty and a 3-year battery warranty.

Frequently Asked Questions

Q: How long does the battery last on the Milwaukee M18 5 CFM vacuum pump?
A: The pump runs for up to 90 minutes per charge in manifold mode and up to 60 minutes in default mode with the included M18 REDLITHIUM HIGH OUTPUT XC8.0 Battery.

Q: Does the Milwaukee M18 vacuum pump work with A2L refrigerants?
A: Yes, this vacuum pump is A2L system compatible and suitable for use with A2L refrigerant systems.
