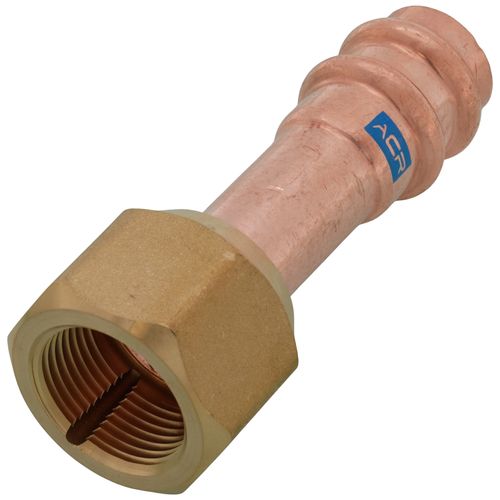

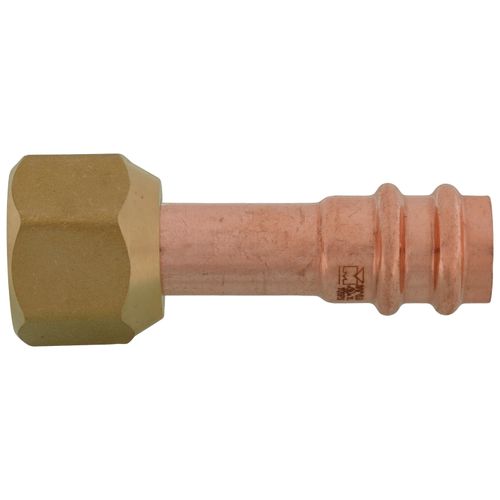

Mueller Streamline RP15729 3/4" OD ACR Copper Press SAE Flare
The Mueller Streamline RP15729 is a 3/4" OD ACR copper press SAE flare fitting designed for refrigeration and air conditioning systems. This fitting uses press connection technology to join copper tubing without soldering or brazing, accommodating pressures up to 700 PSI and temperatures from -40°F to 250°F. The fitting is compatible with R410A and other commonly used refrigerant gases and oils.
Key Features & Benefits
Compatibility & Requirements
This fitting requires a compatible press tool from a leading manufacturer to complete installation. Use only with Type ACR, L, or K copper tube in 3/4" OD size, either hard or soft temper. The fitting is designed for refrigeration and air conditioning applications where R410A and similar refrigerants are specified. Installation should be performed by a qualified installer familiar with press fitting systems and refrigeration codes. Local building codes and refrigeration standards apply to all installations. Verify that the refrigerant type, system pressure, and operating temperature fall within the fitting's specifications before use.
Installation & Care
Cut the copper tube squarely using a proper tube cutter and deburr both the inside and outside edges to prevent seal damage. Slide the fitting onto the tube until it reaches the tube stop inside the fitting body. Position the press tool jaws around the press profile on the fitting body, ensuring full contact around the circumference. Activate the press tool to complete the compression cycle, which forms the permanent seal. Verify that the press profile shows complete and uniform compression around the entire fitting. Repeat this process for the opposite end of the fitting if applicable. Avoid exposing pressed joints to temperatures or pressures beyond the rated specifications. Check all connections for leaks using appropriate refrigerant leak detection methods before charging the system. Do not attempt to disassemble or reuse pressed fittings once the press cycle is complete.
What's Included
Warranty & Support
This fitting is backed by a 10-year limited warranty against defects in material and workmanship.
Frequently Asked Questions
Q: What press tools work with this Mueller Streamline ACR copper press fitting?
A: This fitting is compatible with leading full-size press tools currently available on the market, allowing integration with most professional HVAC installation equipment.
Q: Can this fitting be used with both hard and soft copper refrigeration tube?
A: Yes, this press fitting is approved for use with Type ACR, L, and K copper tube in both hard and soft temper at 3/4" OD size.
| Min Temp (F): | -40°F |
|---|---|
| Max Temp (F): | 250°F |
| Connection Type: | Press |
| Max Pressure (PSI): | 700 |
| Size: | 3/4" |
| Material: | Copper |
| Product Type: | Flare |
