Product Highlights
Description
This product is part of the NAVAC Beat the Heat Promo that is valid from June 1st until August 31st, 2026.
With the purchase of this Cordless Vacuum Pump, No Battery, BreakFree Series (2 CFM), you can choose one of the following Evacuation Kits for FREE by selecting the corresponding bundle:
- Pro Series Rapid Evacuation Kit w/ Valve Core Removal Tool and Hose (3/8" to 1/4" Fitting) (NEVK1) - Purchase bundle NP2D-NEVK1
- Pro Series Rapid Evacuation Kit w/ Valve Core Removal Tool and Hose (1/2" to 1/4" Fitting) (NEVK2) - Purchase bundle NP2D-NEVK2

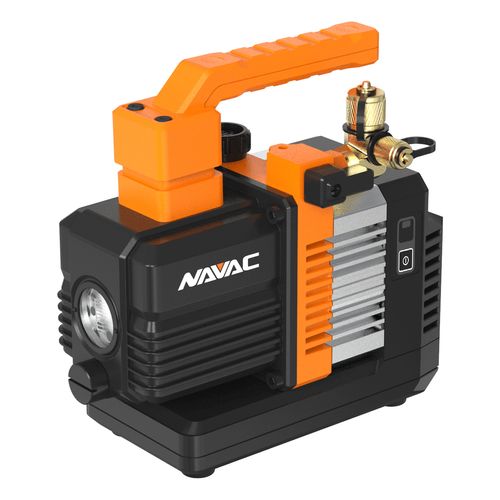

Navac NP2D Cordless Vacuum Pump (Tool-Only), BreakFree Series - 2 CFM
Compact and portable, the NP2D provides 2 CFM performance in a cordless form factor to make light HVAC/R evacuation work simpler in tight spaces and on service calls. This version ships tool-only (no battery).
What's in the Box- 1 x NP2D cordless vacuum pump (no battery)
- Cordless mobility for flexible setup
- 2 CFM performance for light residential/service tasks
- BreakFree Series design focused on portability
- Lightweight, grab-and-go design speeds everyday evacuation work without compromising reliability.
- Navac NBF2 Lithium Battery
- Navac NP4D Cordless Vacuum Pump - 4 CFM
- Navac NP6DLM Cordless Vacuum Pump - 6 CFM
The NAVAC BreakFree Cordless Vacuum Pumps are a technician's favorite, offering unmatched portability, reliability, and performance for HVAC professionals. Now available in a pump-only form for even greater flexibility, they are compatible with DEWALT batteries using the included adapter for maximum convenience, while NAVAC batteries deliver optimal performance. Lightweight and compact, these brushless DC pumps are efficient, easy to carry, and store. With dual-stage technology, they achieve impressive vacuum performance: 2 CFM/23 microns (*NP2D), 4 CFM/15 microns (NP4D), and 6 CFM/15 microns (NP6D). Additional features such as a backflow prevention check valve, isolation valve, lifting hook, and A2L refrigerant compatibility make the BreakFree series the ultimate solution for modern HVAC needs.
*Not included in NP2D
- Power Supply: 18V, 5Ah
- Flow Rate: 2 CFM
- Ultimate Vacuum: 23 micron
- Pump Design: Dual-Stage, DC Motor
- Motor Power: 1/6 HP
- Inlet Port: 1/4" , 3/8" Flare
- Oil Capacity: 5.4 oz
- Dimension: 7.7 x 3.5 x 7.6 in
- Weight: 7 lbs (no battery)
- Warranty: 2 Years
Specs
| Air Flow Capacity (CFM): | 2 |
|---|---|
| Product Type: | Vacuum Pump |
| Inlet Size: | 1/4" 3/8" |
| Warranty: | 2 Year |
| Stages: | 2 |
| Oil Capacity (fl. oz.): | 5.4 |
| Inlet Type: | Flare |
| Ultimate Vacuum: | 23 microns |
