MANUALS (2)
Product Highlights
Description

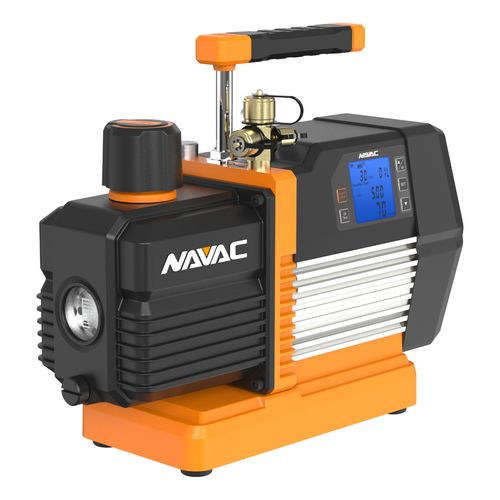

The NP8DS is a professional-grade dual-stage smart vacuum pump from Navac's Master Series, delivering 8 CFM airflow for fast, reliable evacuation on residential and commercial HVAC/R systems. Equipped with smart digital controls and a built-in micron gauge, it provides accurate, real-time performance monitoring while reducing technician workload in the field.
NAVAC introduces the world's first vacuum pump with oil heath test function, NP8DSV. Designed with professional technicians in mind, it offers a powerful 8 CFM dual-stage performance and an impressive 15-micron ultimate vacuum. The one-click oil health test function allows users to quickly assess oil condition, providing a measurable solution so that oil is only changed when needed. The pump seamlessly integrates with the NMV1S Bluetooth vacuum gauge, providing real-time system vacuum readings displayed on the pump and in myNAVAC App. With user-friendly features like automated decay testing, preset vacuum targets, and a built-in solenoid valve for vacuum preservation, this pump is designed for " set it and forget it" convenience. Reliable, efficient, and easy to use, the NP8DSV sets a new standard in system evacuation, helping you save time, reduce costs, and deliver precise, effective evacuations every time.
- Power Supply: 115V/60 Hz
- Flow Rate: 8 CFM
- Ultimate Vacuum: 15 micron
- Pump Design: Dual-Stage, AC Motor
- Motor Power: 3/4 HP
- Inlet Port: 1/4" , 3/8" , 1/2" Flare
- Oil Capacity: 17.6 oz
- Dimension: 13.955.0911.74 in
- Weight: 28.6 lbs
- Warranty: 2 Years
- 1 x NP8DS dual-stage smart vacuum pump
- Built-in digital control panel with micron display
- Power cord and operating manual
- Dual-stage design delivers deeper, faster vacuum performance
- 8 CFM airflow capacity ideal for medium-to-large HVAC/R systems
- Integrated micron gauge provides accurate, real-time vacuum readings
- Smart digital interface with programmable features improves efficiency
- Rugged Master Series construction ensures professional reliability
- Smart technology streamlines evacuation and reduces manual oversight
- Balances strong airflow with precision digital monitoring
- Trusted by HVAC/R technicians for medium-to-large system service
Specs
| Ultimate Vacuum: | 15 microns |
|---|---|
| Air Flow Capacity (CFM): | 8 |
| Inlet Type: | Flare |
| Inlet Size: | 3/8" 1/2" 1/4" |
| Warranty: | 2 Year |
| Product Type: | Vacuum Pump |
| Oil Capacity (fl. oz.): | 17.6 |
| Stages: | 2 |
