NEXUS Digital Manifold Gauge Kit w/ Vacuum Gauge, Bluetooth-Enabled

PROMOTION
This product is part of the NAVAC Beat the Heat Promo that is valid from June 1st until August 31st, 2026.
With the purchase of this NEXUS Digital Manifold Gauge Kit w/ Vacuum Gauge, Bluetooth-Enabled, you can choose one of the following hoses for FREE by selecting the corresponding bundle:

• 1/4" 45° Refrigerant Charging Hose Set (5') (NH5S) - Purchase bundle NX4V-NH5S
• 1/4" 45° Charging Refrigerant Hose Set (5') (NH5SC) - Purchase bundle NX4V-NH5SC
• 1/4" 45° Low Loss Refrigerant Hose Set - Red, Blue, and Yellow (5') (NH5SLL) - Purchase bundle NX4V-NH5SLL

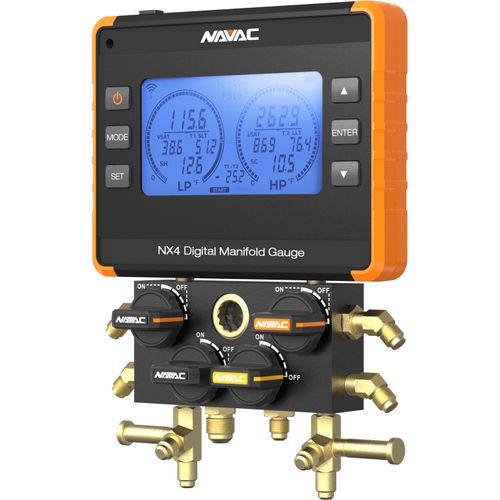

Navac NX4V NEXUS Digital Manifold Gauge Kit w/ Vacuum Gauge (Bluetooth)

Smart digital manifold kit designed for fast, precise diagnostics with integrated vacuum measurement and Bluetooth connectivity. The NX4V streamlines testing, recording, and verification in the field with app-assisted functionality.

The NAVAC NX4/NX4V Nexus Digital Manifold Gauge revolutionizes HVAC diagnostics with advanced wireless features. Equipped with 4 valves, including a 3/8" vacuum port for fast evacuations, it enables a single setup for multi-task operations. Seamlessly connect to Bluetooth-enabled temperature probes and micron gauges to access comprehensive remote insights directly on the Nexus screen. Designed to meet diverse needs, it offers four operational modes: Manifold, Leak Test, Evacuation, and Decay Test. The robust aluminum body and 1/4-turn ball valve ensure lasting durability, while the foldable hidden hook enhances portability. With Class 0.4 accuracy and a clear digital display, it delivers precise readings. Built to endure field challenges, its impact-resistant, rubber-covered construction guarantees reliable, long-term performance.

• Refrigerant Type: R-11, R-12, R-13, R-22, R-23, R-32, R-113, R-114, R-115, R-116, R-123, R-124, R-125, R134a, R-236fa, R-245fa, R-290, R-401A, R-401B, R-402A, R-402B, R-403B, R-404A, R-406A, R-407A, R-407B, R-407C, R-408A, R-409A, R-410A,R-413A, R-414A, R-414B, R-416A, R-417A, R-417C, R-420A, R-421A, R-421B, R-422A, R-422B, R-422C, R-422D, R-424A, R-427A, R-428A, R-434A, R-437A, R-438A, R-448A, R-449A, R-450A, R-452A, R-452B, R-453A, R-454B, R-458A, R-500, R-501, R-502, R-503, R-507A, R-508B,R-513A, R-600, R-600a, R-601, R-601a, R-744*, R-1233zd, R-1234yf, R-1234ze *Maximum pressure: 1087psi(7500kPa)
• Ports: (1) 3/8" sae vacuum: (3) 1/4" sae for suction line liquid line, and refrigerant recovery/charging
• Maximum Manifold Pressure: 1087psi (7500kPa)
• Power Supply: Rechargeable 3000mAh lithium battery For the best charging experience, please use the provided cable, or USB-A to USB-C cables.
• Accessory: NX4V: NMV1S Micron Gauge in addition to the NX4 Kit
• Warranty: 2 years

What's in the Box

• 1 × NX4V digital manifold (kit)
• Vacuum gauge (integrated or included per kit)

Key Benefits & Features

• Bluetooth-enabled for mobile app integration and documentation
• Integrated vacuum gauge for evacuation monitoring
• Digital precision for charge, pressure, and diagnostic workflows
• Compact, rugged design for field conditions

Why NX4V Stands Out

• Combines manifold and vacuum measurement in one unit
• App compatibility for modern, paperless service workflows
• Professional accuracy with streamlined operation
