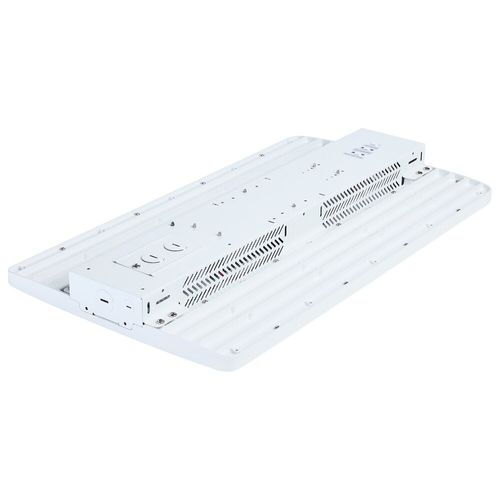

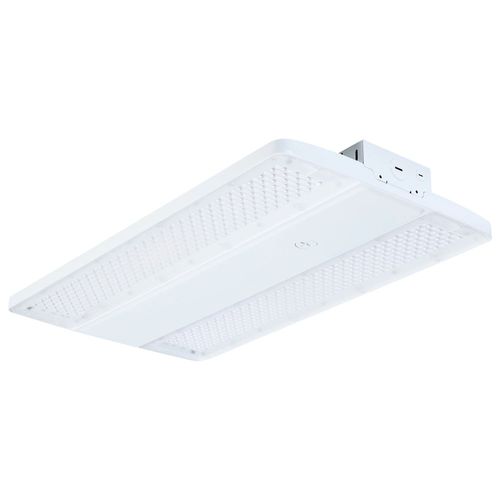

LED Linear High-Bay 180W/220W/240W Wattage Selectable 3K/4K/5K CCT Selectable, 65-1512
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description
The SATCO NUVO 65-1512 LED Beam Selectable Linear Highbay delivers high-lumen performance for large commercial and industrial spaces. Selectable beam options of 45x100, 65x95, or 90x90 support adaptable lighting layouts. Field-selectable wattage settings of 180W, 220W, or 240W produce 28,000 to 38,000 lumens with efficacy up to 158 LPW, with selectable CCTs of 3000K, 4000K, and 5000K. Constructed with a die-cast aluminum housing and polycarbonate lens, it operates on a universal 120-347V input and includes an integrated sensor port and suspension kit. IP20 and IK09 rated, wet-location suitable, DLC 6.0 Listed, rated for 50,000 hours, and backed by a 5-year warranty.
Features
- Constructed from aluminum
- Capable of being dimmed
- Rated for installation in damp locations
- Fixed downlight
- Comes with polycarbonate shades
- For use in commercial settings
- Integrated LED lighting
- Covered under a 5 year manufacturer warranty
Specs
| ANSI Base: | Integrated |
|---|---|
| Wattage: | 240 220 180 |
| Material: | Die-Cast Aluminum |
| Bulb Included: | Integrated |
| Dimmable: | Yes |
| Base Type: | Integrated |
| Warranty: | 5 Year Limited (Fixtures) |
| CCT (Kelvin): | 4000K 3000K 5000K |
| Voltage: | 277v 120v |
| Mount: | Surface Suspension |
| Lumens: | 28000 38000 |
| Country of Origin: | Vietnam |
| Replaceable Light Source: | No |
| Product Type: | Linear Hi-Bay |
| Technology: | LED |
| Application: | Indoor |
| Cri: | 80 |
| Lamp Type: | Integrated LED |
| Operating Temp Range: | -40°F to 131°F |
| Beam Spread: | 90 |
| CCT Selectable: | Yes |
| Finish: | White |
| Frequency: | 50-60 Hz |
| Location Rating: | Damp |
