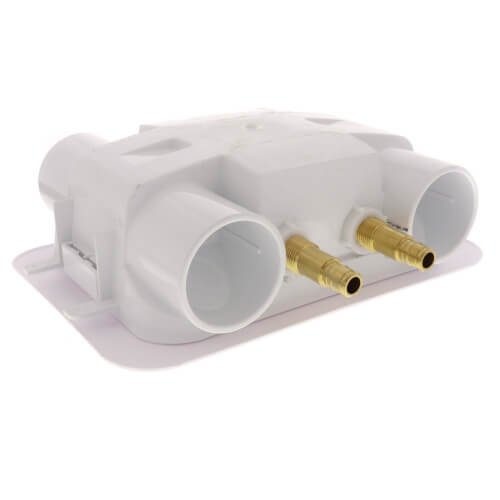

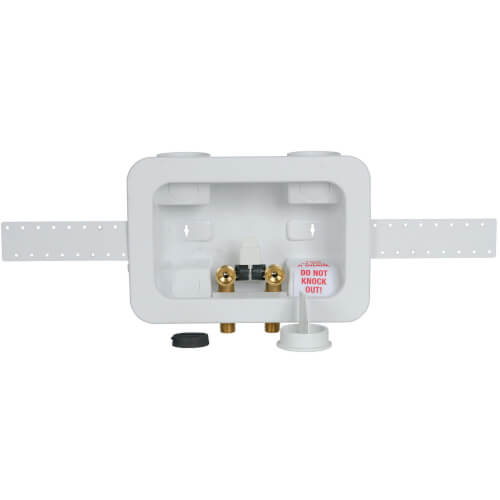

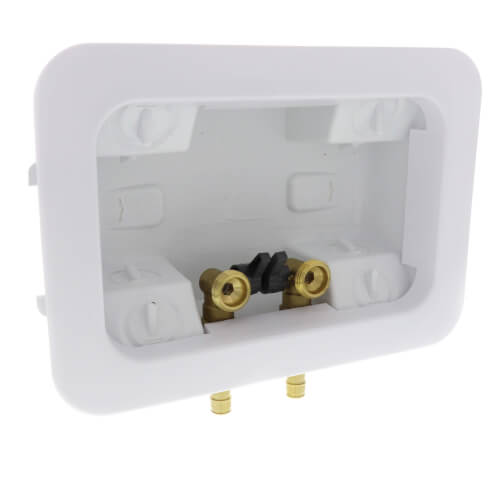

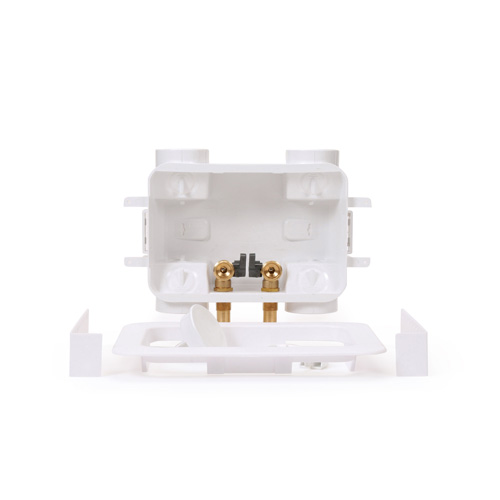

2" X 4" Expansion PEX Washing Machine Outlet Box 1/4 Turn Brass Ball Valves, Assembled
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$42.54 each
In Stock
Get 11 Tomorrow, Jul 7
Order by 6PM, receive Tomorrow
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
PEX Expansion
PVC
Description
–
The 2" X 4" Washing Machine Outlet Boxes provide superior mounting flexibility to accommodate a variety of valve/drain arrangements. As installation practices and codes vary throughout the difference regions of the country, the 2" X 4" is designed for application versatility and fast installation on the job site. Made of PVC durability and performance.
Product Features
Product Features
- Mount for condensate line
- Knockout drain caps
- The two drain ports per drain allow two service hoses to share a common drain.
- Direct stud mount capability
- Snap-on faceplate frame accommodates up to 1" drywall
- Two support brackets and direct stud mounts for easy mounting
- Box, Faceplate, and Brackets made from PVC
- Patented, versatile design allows for right or left drain and top or bottom mounted valves
- Single Lever option allows the valves to operate as a single unit or independently
- Silver handles with removable temperature indicators to provide superior mounting flexibility without having to remove and change handles
- PVC provides additional rigidity and durability for the installation
- Side mounting ribs allow direct mounting to the stud
- Valve: 1/4 Turn
- Tail Piece: ASTM F1960
Specs
–
| Drain Connection: | 2" |
|---|---|
| Inlet Type: | PEX Expansion |
| Product Type: | Washing Machine Outlet Box |
| Material: | PVC |
| Features: | 1/4 Turn Ball Valves |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
3 out of 2 reviews
50% would recommend this product
5 star
50%
4 star
0%
3 star
0%
2 star
0%
1 star
50%
Showing 1-2 of 2 reviews
too big
too big to fit in the place. the connection is 3/4 inch. I need 1.2 inch.
David
Pennsylvania
4 years ago
Verified Buyer
Was this review helpful to you?
Good buy, reasonable price and very functional
Typical install , i branch both of the 2" drain connections and connect the laundry on the right and pipe all HVAC , sump etc lines to right , they also can be ordered with various PEX, and copper connections.
