1/2" Plastic Bend Support
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (3)
Product Highlights
Description
Specs
| Application: | 1/2" PEX |
|---|---|
| Warranty: | 2 Year |
| Material: | Plastic |
| Tubing Compatibility: | PEX |
Questions?
Compare Similar Products
You May Also Need
Product Reviews
Most Liked Positive Review
PEX PIPE SUPPORT AT RIGHT ANGLE
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}

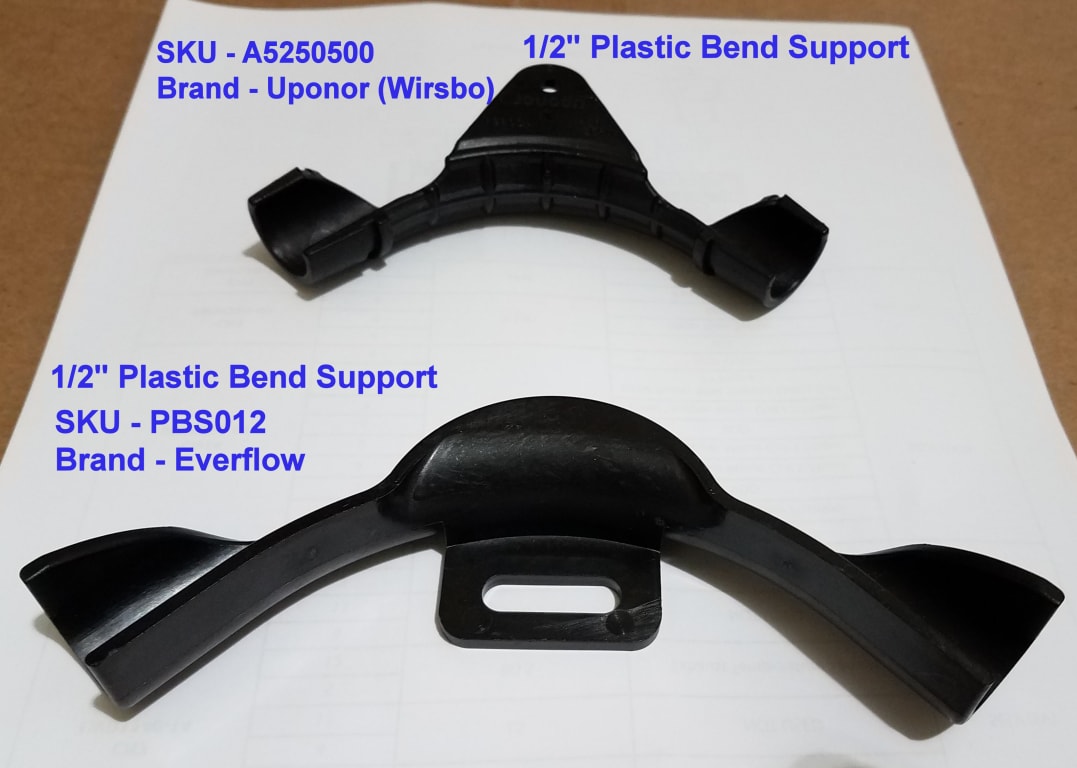

Everflow is bigger, better and cheaper than Uponor (Wirsbo)
Work well
Better quality than at the big box stores.
It works!
not the same quality
Work perfectly. Tight radius for either type A or B PEX

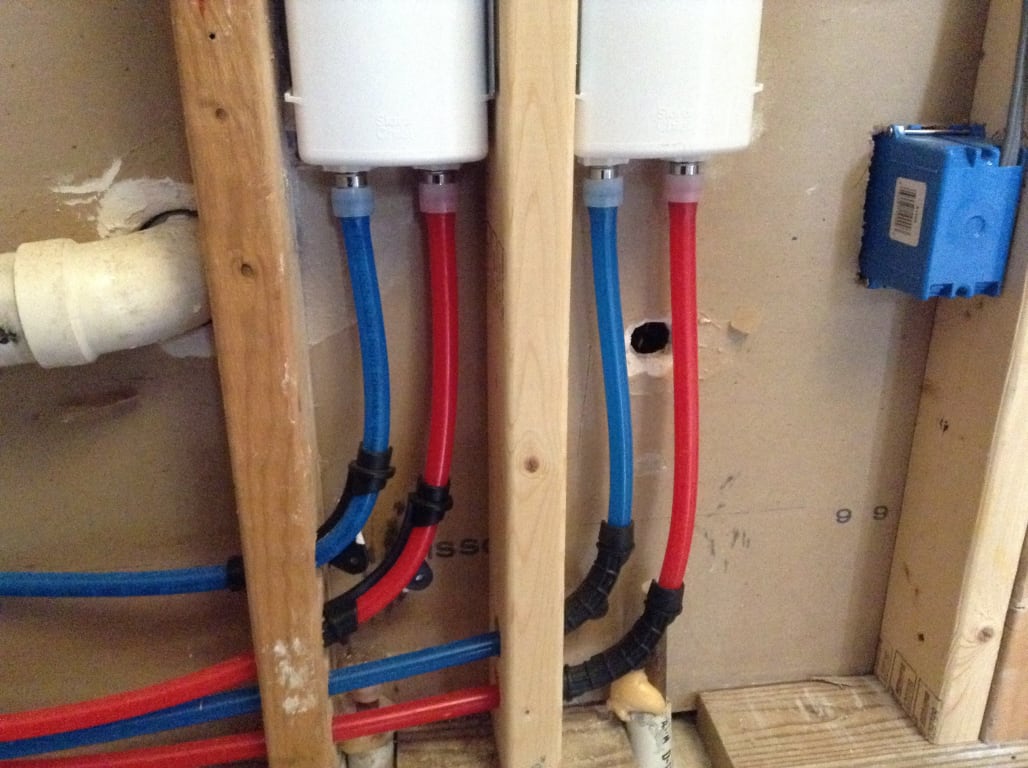

I use for quiet pex installation
i'd buy it again if i needed too
Product Worked as Expected
Extra work but work well. Keeps work neat
Good product
Product Q&A
6 QuestionsQ: Do bend supports need to be secured to an adjacent stud or joist, or can they be simply applied to the pex without being secured to the adjacent structure if the 90 degree comes through the wall below and immediately bends 90 degrees and runs through the adjacent floor joist?
Asked by New to Pex 11 years ago
Add your answer
you do not need to support the bend supports, but it is better if you can. put a short piece of foam pipe insulation around the pex where it comes through any framing without a support.
In my opinion/experience, you can use the support to achieve bends without securing the the support to framing as long as you support the tubing nearby to reduce knocking Please consider the environment before printing this email
While supporting bends would be necessary, say, where they feed out the wall under a lavatory, in the example you give they should be fine unless you expect water hammer issues to cause the pipes to move. It's always a great idea to secure bends, but sometimes it makes little effective difference. Sent from my iPad
no need to secure the 90 Sent from my iPhone
I have never used them, but I don't think that they would need to be attached. One thing i would recommend is to wrap each end with gray tape to keep them from moving. Hope this helps. Garland Sonsel
Q: will these fit in a 3-5/8" wall or does it require a 6" wall?
Asked by jd 13 years ago
Add your answer
It will fit in a standard 2x4 wall. Raymond
yes it will fit in a standard 2x4 stud wall, but it is tight.
Yes, no problem at all.
These fit fine inside a 2x4 wall. Be sure to put shields on studs to prevent nail or screw punctures.
I recently installed these into a standard 2x4 wall for stubbing out faucet and toilet water supply. They will fit for that purpose. I snapped these into a nail-on bracket designed to secure them. the portion that snaps into the nail-on bracket will stick out slightly from the roughed-in wall, but that part is completely covered when sheetrock is installed on your wall. this will leave only Pex sticking out.
If you are coming up thru the center of your bottom plate and going right or left then yes it fits. If you are trying to ninety out front or back then no. The bend is 6" as recommended by the tubing manufacturers. If you want to come out the wall then use a pex elbow or a copper stub out which is what we prefer to use. Rick
I've used them in 2x4 walls for toilet rough ins and they work great. ryan_jpeg
Unfortunately not in a standard 2x4 studded wall. Works nice in a 2x6 wall though. take care, Bob Bob Elam Photography Boonton, NJ 07005 http://www.bobelamphoto.com
Assuming you mean inside the stud cavity, no it will not fit perpendicular to the wall (coming through it). It will obviously let you bend it to the left or right inside the wall. If you want to come up and through the wall, you will need a 90 degree elbow fitting on the pex.
Q: Can I use this with the 1/2" insulated PEX? Would I have to remove the insulation?
Asked by Jimbo 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou can, but you would need to remove the insulation from the tubing in order for the tubing to fit into the support.
Q: can this be used with Rifeng 1/2" PEX?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, you can. Any PEX will work with these supports, as long as the sizes match up.
Q: Can I use this product for ViegaPEX tubing?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes. These bend supports are compatible with any standard PEX tubing.
Q: Where is this support fastened too when metal studs are used. I want to come down the wall with my pex for stub outs for a sink and toilet Thanks, John P
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou would attach the support right to the metal stud.
