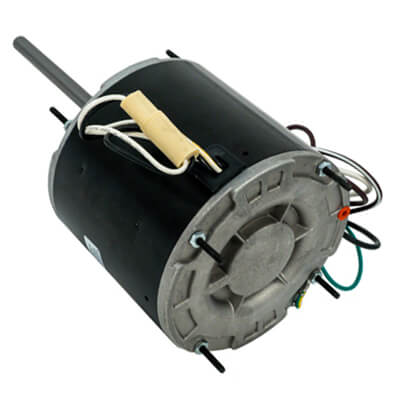

5-5/8" High Temp. Condenser Fan Motor (1/6 HP, 208-230V, 825 RPM)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$179.81 each
Backorder
Get it Wed, Jul 29 - Wed, Aug 26
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
825 RPM
Reversible
1/6 HP
1.1 Amps
Description
–
Note: This is an aftermarket replacement part, please confirm compatibility with your original manufacturer part number
Application:
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting.
Features:
Application:
Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting.
Features:
- Class F Insulation
- 70°C Ambient
- Ball Bearing
- Single Speed
- Drilled and tapped holes in the shell for Rheem mounting
- Reversible
- All Angle Mounting
- Extended Thru Bolts
- 36” Leads
- Energy Efficient PSC Design
Specs
–
| Type: | High Temperature Permanent Split Capacitor |
|---|---|
| Speeds: | 1 |
| Horse Power: | 1/6 |
| Voltage: | 208/230V |
| Amperage: | 1.1 |
| Rotation: | Reversible |
| RPM: | 825 |
| Enclosure Type: | Totally Enclosed |
| Bearings: | Ball |
