HydroGuard LFLM490 Thermostatic Tempering Valves

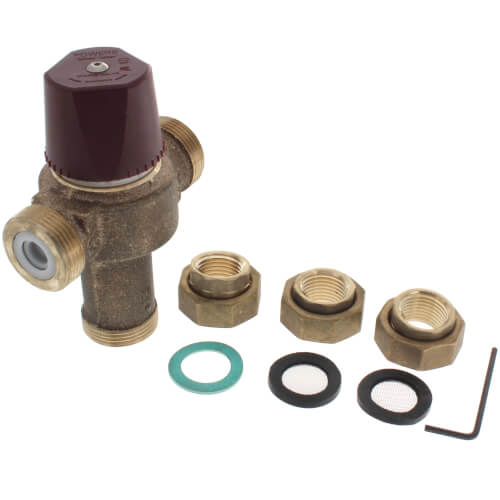

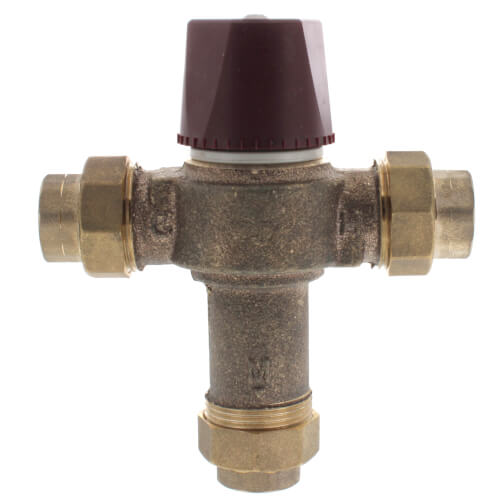

1/2" FNPT Union HydroGuard Thermostatic Tempering Valve (90°- 160°F)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$188.51 each
In Stock
Get 4 Fri, Mar 24
More Available
Order by today, receive Friday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
1/2"
160°F Max Temp
90°F Min Temp
125 PSI
Yes
Description
–
1/2" Union FNPT HydroGuard Thermostatic Tempering Valve (90°- 160°F)
Ideal for hot water heaters and multiple lavatory installations, providing flow rates as high as 23 gallons per minute. Compact design and Lead Free* brass construction simplify installation and maintenance while ensuring years of dependable service. Unique handle mechanism allows exact temperature selection to be "locked-in" for added protection. The Series LFLM490 and LFLM490-10 features Powers' advanced paraffin-based actuation technology, integral checks and inlet screens to prevent cross-flow and contamination. The thermostatic element ensures optimal, consistent performance over a wide range of temperatures. The Series LFLM490 & LFLM490-10 are ASSE 1017 listed and CSA B125 certified.
Features:
Ideal for hot water heaters and multiple lavatory installations, providing flow rates as high as 23 gallons per minute. Compact design and Lead Free* brass construction simplify installation and maintenance while ensuring years of dependable service. Unique handle mechanism allows exact temperature selection to be "locked-in" for added protection. The Series LFLM490 and LFLM490-10 features Powers' advanced paraffin-based actuation technology, integral checks and inlet screens to prevent cross-flow and contamination. The thermostatic element ensures optimal, consistent performance over a wide range of temperatures. The Series LFLM490 & LFLM490-10 are ASSE 1017 listed and CSA B125 certified.
Features:
- Lead Free Brass body construction for durability and to comply with Lead Free installation requirements
- Advanced thermal actuator improves performance at low flow
- Adjustable temperature selection with lock down
- Union connections for easy maintenance
- Integral checks and screen prevents cross-flow and contamination
- Available in 1/2", 3/4", 1" (15, 20, 25mm) with NPT, Sweat, PEX, Quick-Connect, and CPVC union connections
Specs
–
| Application: | Point of Source |
|---|---|
| Size: | 1/2" |
| Max Temp (F): | 160°F |
| Min Temp (F): | 90°F |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Flow Rate (GPM): | 23 |
| Max Pressure (PSI): | 125 |
| Type: | Mixing Valve |
| Lead Free: | Yes |
| Standards Met: | CSA B125 ASSE 1017 |
| Body Pattern: | 3-Way |
| Product Type: | Thermostatic Tempering Valve |
