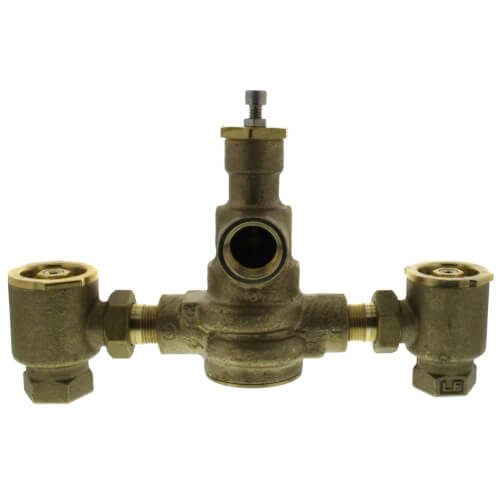

3/4" x 1" HydroGuard XP Supply Fixture, Rough Bronze (90°-160°F)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,177.57 each
In Stock
Get 2 Tue, Apr 4
Order by 4PM, receive Tuesday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
FNPT x FNPT Connection
3/4" x 1"
9.49 Cv
160°F Max Temp
90°F Min Temp
125 PSI
Description
–
3/4" x 1" HydroGuard XP Supply Fixture, Rough Bronze (90°-160°F)
Master tempering valves available in five sizes that temper water as high as 208 gpm and as low as 3 gpm. All valves are listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology for dynamic response and excellent low flow temperature control. The LFMM430 line also features a single-seat design for virtual shut down in the event of cold-water failure, triple-duty check stops with screens, and a 5°F (3°C) approach temperature for low temperature hot water supply. Valves are available in rough Lead Free* bronze and chrome plated finish.
Features:
Master tempering valves available in five sizes that temper water as high as 208 gpm and as low as 3 gpm. All valves are listed to ASSE 1017 and certified to CSA B125. Valves feature advanced paraffin actuation technology for dynamic response and excellent low flow temperature control. The LFMM430 line also features a single-seat design for virtual shut down in the event of cold-water failure, triple-duty check stops with screens, and a 5°F (3°C) approach temperature for low temperature hot water supply. Valves are available in rough Lead Free* bronze and chrome plated finish.
Features:
- Lead Free brass body and checkstops for durability and to comply with Lead Free installation requirements.
- Valve utilizes paraffin-based advanced thermal actuation technology to sense and adjust outlet temperature
- Dirt and lime resistant poppet and seat design
- Virtual shutoff if supply pressure fails
- Vandal-resistant locking mechanism to secure temperature setting
- Factory tested
- Rotatable union triple-duty checkstops
- Rough bronze and chrome finishes
Specs
–
| Size: | 3/4" x 1" |
|---|---|
| Application: | Point of Source |
| Max Temp (F): | 160°F |
| Min Temp (F): | 90°F |
| Connection Type: | FNPT x FNPT |
| Connection Method: | Threaded |
| Flow Capacity (Cv): | 9.49 |
| Flow Rate (GPM): | 64 |
| Max Pressure (PSI): | 125 |
| Type: | Mixing Valve |
| Lead Free: | Yes |
| Standards Met: | ASSE 1017 CSA B125 |
| Body Pattern: | 2-Way |
| Product Type: | Supply Fixture |
| Finish: | Rough Bronze |
