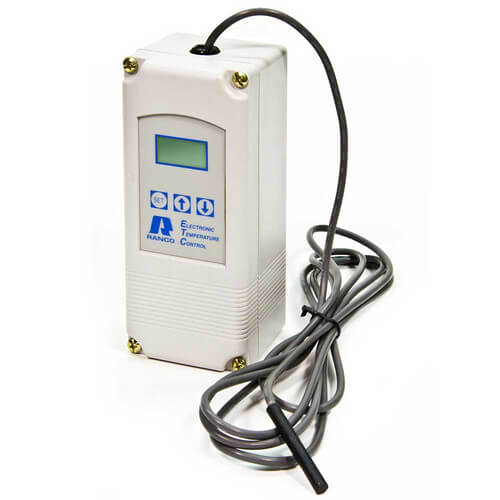

Single Stage ETC Temperature Control w/ Sensor (120/240V Input) - Includes 8' Cord
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (2)
Product Highlights
Description
- Unlike many electronic controls, the ETC is simple to install and set up. One finger is all you need to program it. The standard digital display and keypad allow the user to adjust the temperature settings with 1 degree resolution. Setpoint temperature, differential and mode of operation (heating or cooling) can all be selected using the keypad and display.
When not in the programming mode, the display gives a constant readout of the sensor temperature. Annunciators on the liquid crystal display also indicate when the relay is energized.
Remote Temperature Sensing
- The ETC is capable of remote temperature sensing up to 400 feet away from the control when using standard 22 gauge sensor wire.
Built-In Safety
- Every ETC model is equipped with diagnostic programs that check for hardware, software, or system problems and display different error codes to indicate where the trouble is.
The ETC also has a keyword lockout switch to prevent tampering with the control settings by unauthorized personnel. The switch, which is located inside the enclosure, can be used to disable the keypad function.
Specifications
- Temperature Setpoint Range: -30° to 220°F
- Differential Range: 1 to 30 Degrees F
- Input Power Requirements: 120/208/240 VAC
- Sensor: Thermistor, 2" long x 1/4" Diameter, with 8' cable
- Control Ambient Temperatures: Operating (20-140), Storage (40-176)
- Ambient Humidity: 0 to 95% RH, non-condensing
- Enclosure: NEMA 1
- Dimensions: 6.52" high x 2.7" wide x 2.48" deep
- Agency Approvals: UL Listed, CSA Certified
- Switch Action: SPDT
Specs
| Capillary Length: | 8' |
|---|---|
| Application: | Remote Bulb Temperature |
| Temperature Range: | -30° to 220°F |
| Min Temp (F): | -30°F |
| Differential: | 1° to 30°F |
| Voltage: | 120v 240v 208V |
| Sensor Type: | Thermistor |
| Bulb Size: | 2" x 1/4" |
| Operating Temp Range: | -20° to 140°F |
| Enclosure Type: | NEMA-1 |
| Height: | 6.52" |
| Width: | 2.7" |
| Depth (Inches): | 2.48" |
| Switch Action: | SPDT |
| Humidity Range: | 0 to 95% RH (Non Condensing) |
| Contact Ratings 120v: | 96.0 ALR 16.0 AFL |
| Contact Ratings 240v: | 48.0 ALR 8.0 AFL |
| Resistive: | 15 A 8 A |
| Horse Power: | 1 |
| Pilot Duty Rating: | 125 VA |
| Stages: | One |
Questions?
Product Reviews
Most Liked Positive Review
Super Easy
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Difficult to wire
A great performer
Great product
I would buy this product again and again.
Great thermostat
Control met expectations
I would buy this product again
I would buy this product again.
I will be buying this product again for a new garage heater
Doesn't stay set after power failure.
quick shipping; good service
Product Q&A
15 QuestionsQ: I'd like to use this to keep the temperature in our fridge around 65-70 degrees but am wondering what happens to the freezer portion if I plug the unit into this? Does the freezer compressor only come on when the fridge kicks on? Is there any way to keep the freezer portion frozen and the fridge portion temperature controlled? Thanks!
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffWe recommend that you contact the manufacturer of your refrigerator. It is possible that the this thermostat would turn off the freezer as well.
Q: Does this unit come with a power cord? I don’t see one in the picture, or in any of the specs
Asked by Joe 15 years ago
Add your answer
Verified Reply- PexSupply StaffPower cord is not included; you must supply your own. The following video may contain some useful information: http://www.youtube.com/watch?v=peoL_dcHaU
This unit does not come with a power cord.
Q: we put the sensor with about 18in of the cord in the water on our wood water furnace in about 2 months the sensor gave a ep code we know the water wasn't 225deg. do we need to put this in a bulb well and do you have one?will it still sense as well?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, these sensors should not be submersed in any liquid. You would need to use a thermal/bulb well. The only ones we have are parts 121371A, 121371B, and 121371M.
Q: I can't read the numbers on the display screen? It's all black.
Asked by Miranda 16 years ago
Add your answer
Verified Reply- PexSupply StaffThis can be a power problem. We recommend checking the incoming voltage and ensure there is power. If you need further assistance, we recommend contacting the manufacturer for additional technical support.
Did it get wet? Sounds like the screen is simply dead. It's never happened to me, and I don't know of any way to change it. (By the way, dumb point, but if for some reason you are using this in an area with bright light, make sure you are not trying to look at it through polarized lenses, like for sunglasses -- that can cause LCD "blackout" too.)
It could be several things. LCDs will go all black if they get too hot. Once they cool down, they will be fine. It could also be defective. LCDs can freeze too. If they freeze, the display seal (yes, that's where the 'liquid' part of the name comes from) may break and then it's all over for the display...
excessive heat from direct sunlight can overheat the display and cause it to go black. When the unit cools down, then display should return to normal. LCD screens are susceptible to heat.
It's most likely not wired correctly.... http://www.youtube.com/watch?v=peoL_dcHaU8 This is a link to a instructional vid and wiring diagram.
Perhaps you don't have power to the unit. Check input voltage with a basic 120/240 volt check light and check to see that you have it connected correctly. If it all checks out perhaps you have a faulty unit.
Q: My 111000-000 is not operating. It continues to give the " E2 " Message. Can I REPROGRAM it myself ? Where or how can I get that information? Many Thanks ,again C.C. OURSO
Asked by C.C. 16 years ago
Add your answer
Verified Reply- PexSupply StaffThe E2 message is a memory error. You can press the "Set" button to go through all the settings. If the unit continues to show E2 then you will need to replace the unit. You can refer to this Owner's Manual for additional information http://s3.pexsupply.com/manuals/1283530359689/38736_PROD_FILE.pdf
