ETC-211000 has been discontinued
Discontinued April 27, 2013
This product was discontinued because the part number was changed by the manufacturer. No modifications were made to the replacement product.
MANUALS (2)
Direct Replacement:

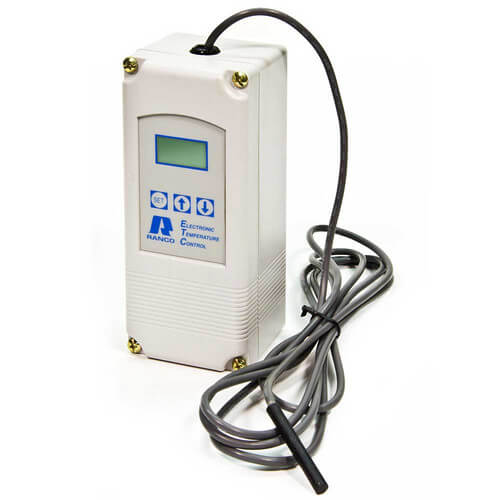

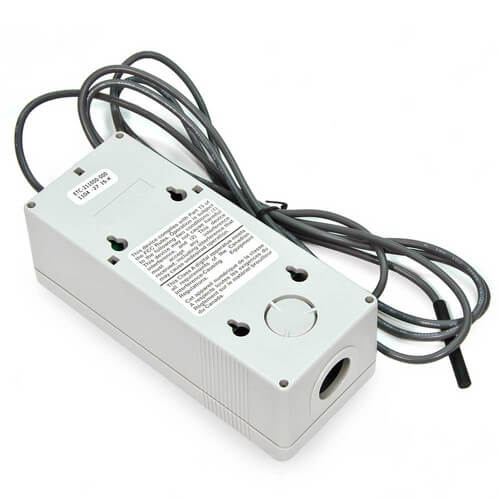

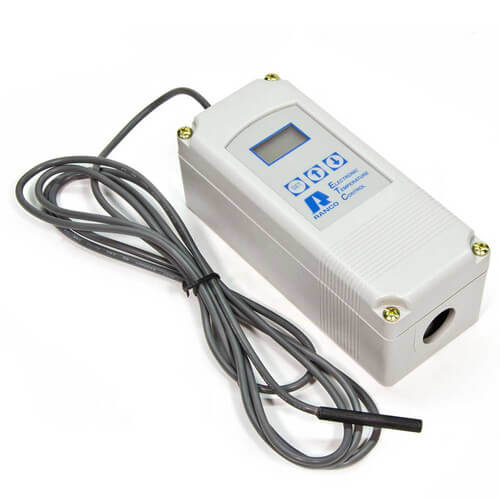

Two Stage Temperature Control w/ Sensor (120/240V Input)
Product Highlights
–
240v, 208V, 120v
-30° to 220°F Max Temp
-30°F Min Temp
1° to 30°F
SPDT
6.52"
Description
–
Digital Display
Remote Temperature Sensing
Built-In Safety
Specifications
- Unlike many electronic controls, the ETC is simple to install and set up. One finger is all you need to program it. The standard digital display and keypad allow the user to adjust the temperature settings with 1 degree resolution. Setpoint temperature, differential and mode of operation (heating or cooling) can all be selected using the keypad and display.
When not in the programming mode, the display gives a constant readout of the sensor temperature. Annunciators on the liquid crystal display also indicate when the relay is energized.
Remote Temperature Sensing
- The ETC is capable of remote temperature sensing up to 400 feet away from the control when using standard 22 gauge sensor wire.
Built-In Safety
- Every ETC model is equipped with diagnostic programs that check for hardware, software, or system problems and display different error codes to indicate where the trouble is.
The ETC also has a keyword lockout switch to prevent tampering with the control settings by unauthorized personnel. The switch, which is located inside the enclosure, can be used to disable the keypad function.
Specifications
- Temperature Setpoint Range: 30 to 220 Degrees F
- Differential Range: 1 to 30 Degrees F
- Input Power Requirements: 120/208/240 VAC
- Sensor: Thermistor, 2" long x 1/4" Diameter, with 8' cable
- Control Ambient Temperatures: Operating (20-140), Storage (40-176)
- Ambient Humidity: 0 to 95% RH, non-condensing
- Enclosure: NEMA 1
- Dimensions: 6.52" high x 2.7" wide x 2.48" deep
- Agency Approvals: UL Listed, CSA Certified
- Switch Action: SPDT
Specs
–
| Capillary Length: | 8' |
|---|---|
| Application: | Remote Bulb Temperature |
| Max Temp (F): | -30° to 220°F |
| Min Temp (F): | -30°F |
| Differential: | 1° to 30°F |
| Voltage: | 240v 208V 120v |
| Sensor Type: | Thermistor |
| Bulb Size: | 2" x 1/4" |
| Operating Temp Range: | -20° to 140°F |
| Enclosure Type: | NEMA-1 |
| Height: | 6.52" |
| Width: | 2.7" |
| Depth (Inches): | 2.48" |
| Switch Action: | SPDT |
| Humidity Range: | 0 to 95% RH (Non Condensing) |
| Contact Ratings 120v: | 58.8 ALR 9.8 AFL |
| Contact Ratings 240v: | 29.4 ALR 4.0 AFL |
| Horse Power: | 1/2 |
| Resistive: | 9.8 A 4.9 A |
| Pilot Duty Rating: | 125 VA |
| Stages: | 2 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4.77 out of 13 reviews
92% would recommend this product
5 star
92%
4 star
0%
3 star
0%
2 star
8%
1 star
0%
Most Liked Positive Review
Great alternative to mechanical controls
I bought this controller to replace two mechanical temperature limits. I have my controller installed on a wood fired boiler. Stage one shuts the damper when a certain temperature is reached and the second stage starts a pump to prevent the bolier from overheating (heat dump zone) The controller works great. The nice thing about a digital controller over the mechanical controllers is you can actually see what the temperture is. These have worked flawlessly. One thing I was surprised to learn is they hold there settings when the power goes out. My power was only out for a short time and when it came back on the setting were still in the controls. How long the setting stay I don't know. I would recommend these to anyone with a wood boiler to keep track of there system.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Versatile Control
I purchased this control to replace one that had failed. The ETC series are very versatile, but have a high failure rate after a couple of years. I have at least 50 in service and regret it. Ranco customer service (invensys)does not answer emails. I would recommend using a different control where possible.
Showing 1-10 of 13 reviews
Perfect replacement for OWB
Shipped fast, price was great, and works perfect!!
RW
Pennsylvania
1 years ago
Verified Buyer
Was this review helpful to you?
if needed again i would buy again
GREAT deal
BEN
LITCHFIELD ,MI.
7 years ago
Verified Buyer
Was this review helpful to you?
Great service!
This aquastat was a replacement for one on my geothermal heat pump system. I first ordered the wrong one. Customer service quickly issued me a return label and shipped out the correct item. They immediately credited my account for the price of the incorrect item as soon as they received it. Great, friendly customer service! The new aquastat works perfectly.
John
Virginia
7 years ago
Verified Buyer
Was this review helpful to you?
Perfect Solution
I use this on an outdoor coal furnace. It allows much greater control over the draft by providing independent control of the blower and damper. It also provides for a much smaller differential.
A coal fire requires only very subtle changes in draft. No more going out on those warmer days and no more boiling over on those colder days.
I have seen some negative comments on longevity. So far so good. I did purchase a spare but so far it has not been needed.
fire
Central PA
8 years ago
Verified Buyer
Was this review helpful to you?
Ranco
Controller worked well. Supply house was prompt with delivery schedule. Very satisfied with the service.
Thank you
Mik
Ny
8 years ago
Verified Buyer
Was this review helpful to you?
Great Service!
Very easy to use website and super fast shipping.! The controller (for my wood stove) had easy to understand instructions making the replacement very simple. I would definitely purchase from them again.
Chris
West Branch, MI
8 years ago
Verified Buyer
Was this review helpful to you?
Did the trick to control circulator for pool heat exchanger
used control to start and stop pump on set temperatures of pool water. Pump on the feed side of the heat exchanger.
Greg
Fort Kent Maine
10 years ago
Verified Buyer
Was this review helpful to you?
Fast service
Great product, customer service was great also.
Denny
Cassopolis, MI.
10 years ago
Verified Buyer
Was this review helpful to you?
great product
good deal
BEN
LITCHFIELD,MI.
12 years ago
Verified Buyer
Was this review helpful to you?
Versatile Control
I purchased this control to replace one that had failed. The ETC series are very versatile, but have a high failure rate after a couple of years. I have at least 50 in service and regret it. Ranco customer service (invensys)does not answer emails. I would recommend using a different control where possible.
Big Shrub
Osceola Mills, PA
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: need to know if this unit is capable to be set to celcius temperature for control
Asked by Jim 10 years ago
Add your answer
-
Yes. You have your choice of F or C in the set menu.
Was this review helpful to you?
-
Yes, you can choose either Celsius or Fahrenheit when programming it.
Was this review helpful to you?
-
Yes this control can be set F or C
Was this review helpful to you?
Q: where can i download an owners manual?
Asked by outspokin 16 years ago
Add your answer
Verified Reply- PexSupply StaffYou can find general product information/specifications in this manual: http://s3.pexsupply.com/manuals/1285165411535/39574_PROD_FILE.pdf and you can find programming instructions here: http://s3.pexsupply.com/manuals/1285165393216/39573_PROD_FILE.pdf
