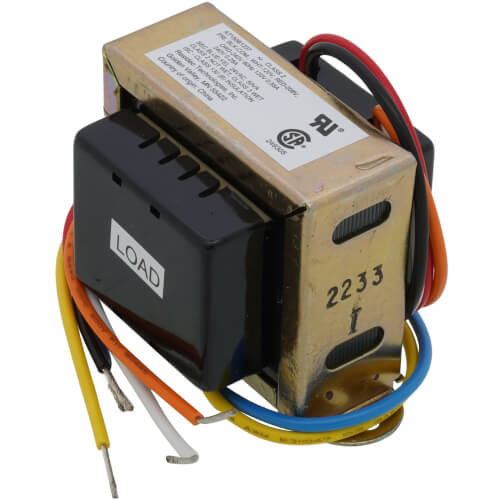

Foot Mounted 120/208/240 Vac Transformer w/ 9 in. Lead Wires w/ Plastic End Caps, AT150B1237
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$43.17 each
In Stock
Get 9 Tomorrow, Jul 8
Order by 6PM, receive Tomorrow
MANUALS (2)
This item replaces: AT150B1146
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
Foot, Plate, Clamp
-20°F - 105°F
Description
–
Features:
Color-coded leadwires for primary connections and screw terminals for secondary connections, fixed 1/4 inch (6 mm) male quick-connects or color-coded leadwires for both primary and secondary, are standard.
Meet NEC Class 2 requirements.
Meet Underwriters Laboratories Inc. Standard UL 1585 and are identified. Class 2 not wet, Class 3 wet.
Electrical Ratings -Primary Voltage: 120 Vac, 208 Vac, 240 Vac
Electrical Ratings -Secondary Voltage: 27.5 V.O.C.
Frequency: 60 Hz
Mounting: Foot-mounted
Electrical Connections (Primary)(in.): 9 in. leadwires with 1/4 in. male quick-connects
Electrical Connections (Secondary)(in.): 9 in. leadwires with 1/4 in. male quick-connects with plastic (2) end covers
Electrical Ratings -Output 24 Vac at 50 VA
Dimensions (in.): 1 11/16 in. high x 3 1/2 in. wide x 1 3/4 in. deep
Temperature Ratings (F): -20 F to +105 F
Approvals, Underwriters Laboratories Inc: UL Component Recognized: B, D, E models. File# E14881
Approvals, Canadian Standards Association: CSA Certified: A & B models
Includes : Plastic end caps
Specs
–
| Application: | 24v Controls |
|---|---|
| Voltage (Primary): | 208V 240V 120V |
| Voltage (Secondary): | 27.5 V.O.C. |
| Mount: | Foot Plate Clamp |
| VA Rating: | 50 |
| Wiring: | 9" leadwires 2 Screw Terminals |
| Electrical Output: | 24 Vac at 50 VA |
| Hertz: | 60 |
| Temperature Range (F): | -20°F - 105°F |
