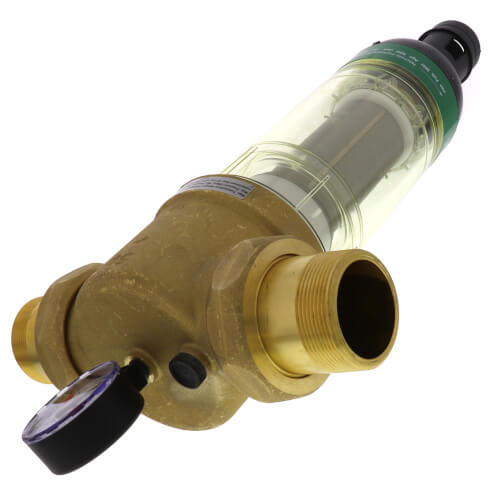

2" Sediment Removal Water Filter (Plastic)
Hover image to zoom
2" Sediment Removal Water Filter (Plastic)
Hover image to zoom
$862.87 each
In Stock
In Stock
Get 6 Wed, Mar 6
Fast Track Logo
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Size icon
2"
Material icon
Plastic Sump
Connection Type icon
NPT Connection
Height icon
20-15/16"
Diameter (Inches) icon
4-3/4" Diameter
Max Pressure (PSI) icon
230 PSI

Description

**Shown with Plastic Sump
Features
= Whole House Protection
= Ideally suited for sediment removal applications that would quickly plug and restrict the flow of normal filters.
= Used as a prefilter, the F76 protects elements of the water system, including specialized treatment devices or other common fixtures and appliances.
= The flow filtering capacity and ease of cleaning make the F76S ideal for the most demanding applications.
= Built-in secondary filter provides an uninterrupted supply of filtered water during backwashing.
Product Specifications
Description - 2 inch Water filter
Pipe Size (inch)- 2 in.
Pipe Size (DN)- DN15
Connection Type - NPT External Threaded and Sweat
Sump - Clear Plastic
Capacity (Cv) - 30 Cv
Capacity (Kv) - 25.7 Kv
Pressure Ratings (psi) - 230 psi maximum
Dimensions (in.) - 20 5/16 in. high x 10 1/2 in. wide x 3 13/16 in. deep
Dimensions (mm) - 532 mm high x 267 mm wide x 97 mm deep
Weight (lb) - 10.6 lb
Weight (g) - 4.8 kg
Screen Size - 100 micron screen
Temperature Rating (F) - 104 F Maximum
Materials (Body) - Brass
Temperature Rating (C) - 40 C Maximum
Includes - gauge and service wrench

Specs

Product Type:

Filtration System

Application:

Commercial

Point of Entry

Pre-Filter

Plumbing

Type:

Sediment

Whole House

Micron Rating:

100

Flow Rate (GPM):

4.7

Max Water Temp (°F):

104°F

Size:

2"

Material:

Plastic Sump

Connection Type:

NPT

Height:

20-15/16"

Diameter (Inches):

4-3/4"

Reduction Claim:

Sediment

Rust

Max Pressure (PSI):

230

Thread Type:

Male

Temperature Range (F):

104°F Max
