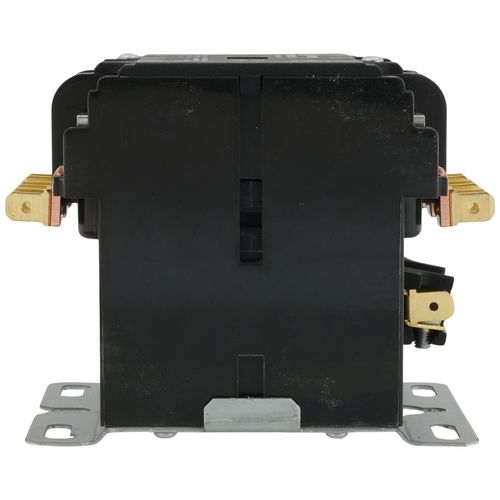

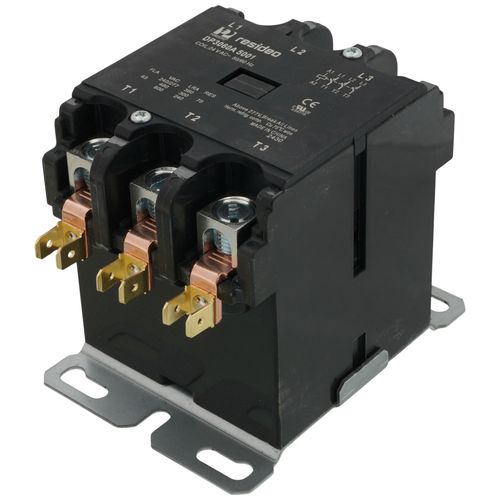

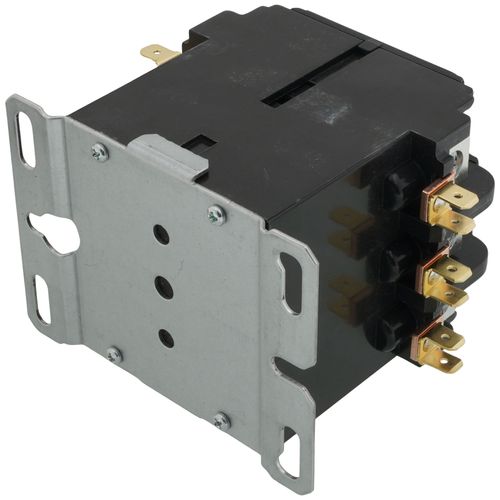

24 Vac 3 Pole PowerPro Deluxe Definite Purpose Contactor w/ Lug Connectors, DP3060A5001
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$152.52 each
In Stock
Get 1 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
This item replaces: DP3060A5000
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
50 Amps
24V
-4°F to 149°F
Description
–
Contact Electrical Ratings (AFL @ 277, 480, 600 Vac) 50 A @ 240/277 Vac, 480 Vac, 600 Vac
Overview:
These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.
Features:
Shrouded coils on 3 pole (25A to 60A) models protect the coil from harsh environment factors.
Moisture proof epoxy is used to encapsulate the 3 pole 75A through 120A coils.
Multiple mounting holes and slots for convenient, interchangeable mounting with most competitive devices.
Traditional design meets many needs.
Full array of replacement coils, contact sets and accessories available.
Coil Ratings Voltage: 208 Vac/240 Vac
Poles: 3
Electrical Connections (main): lug connectors
Contact Connections (coil): 1/4 in. quick-connects and #6 screws
Dimensions (in.): 3.1" high x 3.62" wide x 2.4" deep
Overview:
These three pole definite purpose electromagnetically operated contactors provide switching for starting of induction motors.
Features:
Specs
–
| Application: | PowerPro Definite Purpose Contactor |
|---|---|
| Poles: | 3 |
| Amperage: | 50 |
| Voltage: | 24V |
| Temperature Range (F): | -4°F to 149°F |
| Coil Ratings: | 240v 208v |
