Description
Please note: This item requires (2) adapters for installation. You can find the options available in the 'You May Also Need' section below.

Take boiler installation to the next level with our magnetic hydraulic separators – a new addition to Resideo’s comprehensive portfolio of hydronic products. Designed to simplify boiler piping for critical flow management between connected hydraulic circuits, these separators help keep the boiler and heat emitters clean as the dirt and magnetite are gathered in the separator, improving heat transfer with air removal.

Product Features
  • Flanged and union models

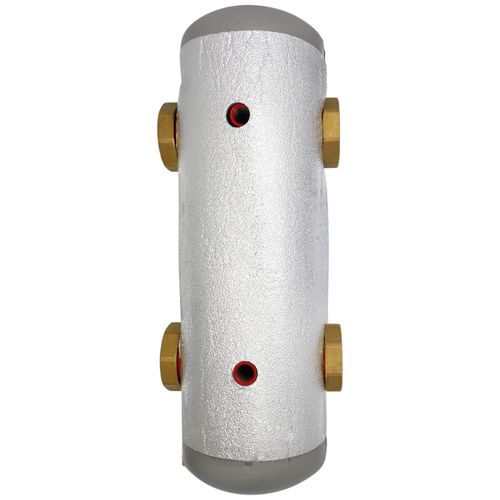

  • Insulation included
  • Ideal for residential and commercial applications
  • Metal mesh prevents reciprocal influence between circulators and compensates for flow differences, reducing system turbulence

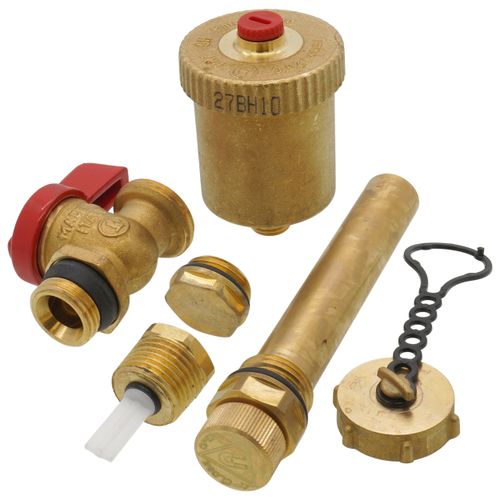

  • Air bubbles inside circuits are separated and vented through upper air valve, minimizing water hammer
  • Magnet separates metal debris and dirt, which get flushed through bottom discharge valve, protecting the boiler system, pumps and heat exchanger
  • Insulated cover adds a layer of protection
Product Specifications
  • Temperature range: 32°F - 230°F
  • Maximum working pressure: 145 PSI (10 Bar)
  • Maximum pressure of air vent operation: 102 PSI (7 Bar)
  • Fluids used: Water, glycol-based solution (max. 50% glycol concentration)
  • Separator connections: ASTM B124 UNS C37700 (CW617N EN 12165)
  • Air vent valve connection: 1/2"F
  • Drain tap connections: 1/2" M + pipe-holder connection
  • Additional frontal connection: 1/2"F
Hide Description
Specs
Size:

2"

Product Type:

Hydraulic Separator

Max Pressure (PSI):

145

Max Temp (F):

230°F

Features:

Magnetic

Connection Type:

Union

×
