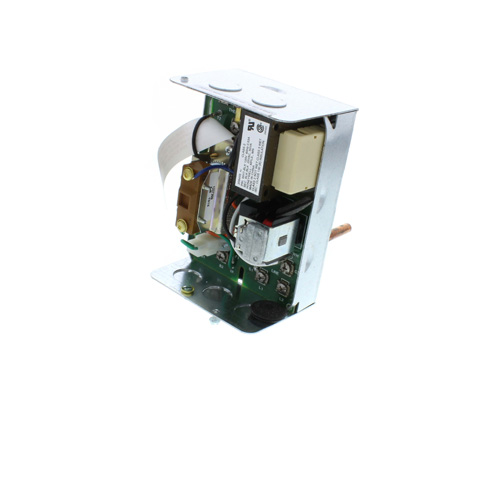

High Limit Vertical Mount Aquastat Relay, 15-Degree(F) differential w/ 50VA Transformer, L8148E1299
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
MANUALS (2)
Product Highlights
Description
Features:
- High limit opens burner circuit only.
- Select models include transformer and accessory terminals for adding a remote low limit controller.
- Case available for horizontal or vertical mounting.
- Requires a 24 Vac thermostat with heat anticipator set at 0.2A.
- Hazmat Information: UN1294 Toluene
- Application: High Limit
- Dimensions (in.): 6-1/8 in. high x 4-5/16 in. wide x 3-1/8 in. deep
- Maximum Safe Operating Pressure (psi): Immersion Well: 255 psi
- Maximum Safe Operating Pressure (kPa): Immersion Well: 1757 kPa
- Temperature Range (F) Maximum--150 F with 1.2 A 24 V load; 77 F with 1.4 A 24 V load
- Temperature Range (C) Maximum--66 C with 1.2 A 24 V load; 25 C with 1.4 A 24 V load
- Includes 50 VA transformer
- Mounting Vertical Mount
- Electrical Ratings Low Voltage: 0.8 A max. @ 24 Vac; 0.25 A @ 0.25 to 12 Vdc; At Locked Rotor-- 44.4A @ 120 Vac: 22.2A @ 240 Vac
- Frequency 60 Hz
- Approvals, Underwriters Laboratories Inc. UL Listed: File No. MP466, Vol. 13, Sec. 2, Guide No. MBPR2.
- Approvals, CSA Certified: File No. LR95329-1
- Electrical Connections: Quick-Connect / Screw
- Operating Humidity Range (% RH): 0 to 95% RH, non-condensing
- Voltage: 120 Vac
- Operating Temperature Range (F): High Limit-- 180 F to 240 F
- Operating Temperature Range (C): High Limit-- 82 C to 116 C
- Differential Temperature (F): 15 F fixed
- Switching Action: SPST: High Limit & Circulator
- Anticipator Setting: 0.2 A
- Capillary Length (in.): 4-1/2 in.
- Insulation Depth (in.): 1-1/2 in. to 3 in. less well
- Insulation Depth (mm): 38 mm to 76 mm less well
- Capillary Length (mm): 114 mm
- At Full Load-- Low Voltage: 0.8 A max. @ 24 Vac: Line Voltage: 7.4 A @ 120 Vac: 3.7 A @ 240 Vac
- At Locked Rotor-- Line Voltage: 44.4 A @ 120 Vac: 22.7 A @ 240 Vac; Millivolt--0.25 A @ 1/4 to 12 Vdc
- At Full Load-- 7.4 A @ 120 Vac: 3.7 A @ 240 Vac
- At Locked Rotor-- 44.4 A @ 120 Vac: 22.2 A @ 240 Vac
Specs
| Frequency: | 60 Hz 60 Hz |
|---|---|
| Application: | High Limit |
| Switch Action: | SPST |
| Electrical Rating: | 0.25 A @ 0.25 to 12 Vdc Burner: 3.7 A @ 240 Vac Burner: 7.4 A @ 120 Vac Circulator: 3.7 A @ 240 Vac Burner: 0.8 A max @ 24 Vac Circulator: 7.4 A @ 120 Vac |
| Electrical Ratings (ALR): | Burner: 22.2 A @ 240 Vac Circulator: 44.4 A @ 120 Vac Burner: 44.4 A @ 120 Vac Circulator: 22.2 A @ 240 Vac |
| Differential: | Fixed |
| Max Temp Differential: | 15°F |
| Height: | 6-1/8" |
| Width: | 4-3/8" |
| Depth (Inches): | 3-1/8" |
| Operating Humidity: | 0% to 95% (non-condensing) |
| Mount: | Vertical |
| Max Ambient Temp (°F): | 77F with 1.4A 24V Load 150F with 1.2A 24V Load |
| Connection Type: | Quick-Connect |
| Capillary Length: | 4-1/2" |
| Anticipator Rating: | 0.2 A |
| Voltage: | 120v |
| Max Pressure (PSI): | 255 (Immersion Well) |
| Min Temp (F): | 180°F |
| Max Temp (F): | 240°F |
| Temperature Range (F): | 180°F to 240°F |
