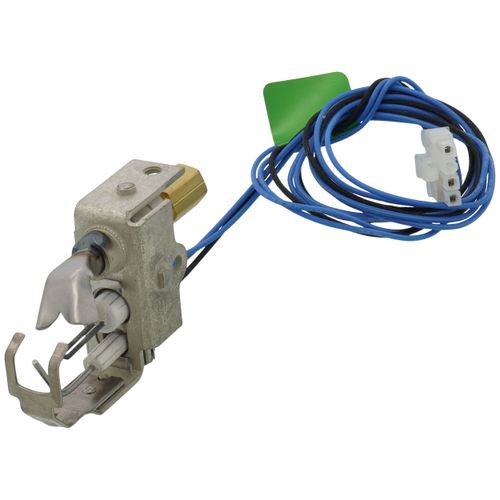

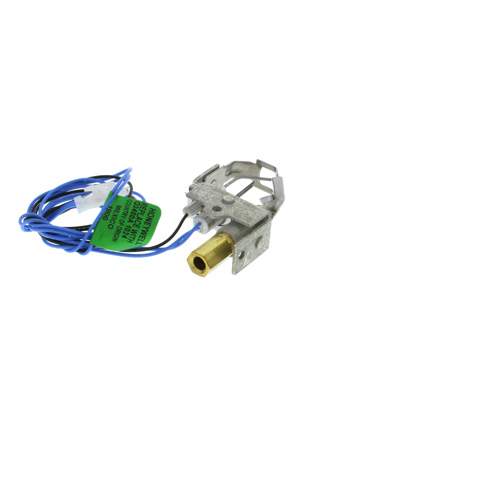

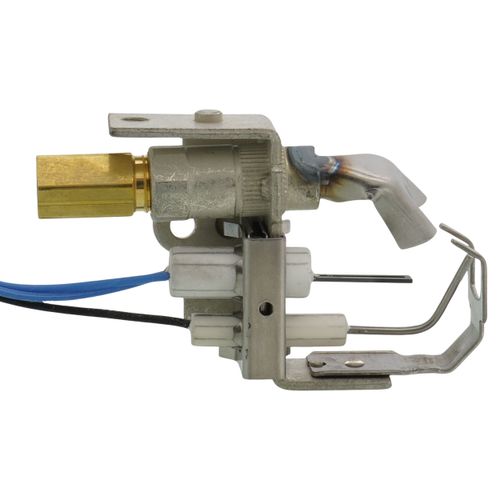

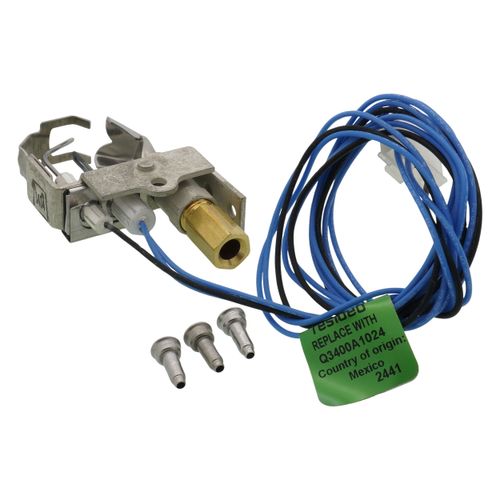

Pilot Burner for Natural Gas with a BCR-18 Orifice (Left Single Tip Style, "C" Mounting), Q3450C1185
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$137.61 each
In Stock
Get 5 Tue, Jun 23
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
SV9501, SV9600
Description
–
These SmartValve System pilot burners provide pilot flame ignition and sensing for SV9500/SV9600 Systems. They consist of replaceable igniter-flame rod assembly, bracket assembly, pilot target, ground electrode, orifice assembly, compression fitting and spring clip. The igniter lights the pilot burner. The flame rod proves the pilot flame and the pilot flame lights the main burner.
Features:
Features:
- Used with SV9500/SV9600 SmartValve System.
- Replaceable Igniter-Flame Rod Assembly (Q3400A).
- Integral keyed plug provides quick, convenient connection of igniter and sensor to SV9500/SV9600.
- Q3450 has front or 20 degree right, left flame pattern.
- Natural and LP gas orifices available.
- Variety of target styles available.
- Variety of mounting brackets available.
- CGA Certified: File No. 1029-ABI/CC9203
- AGA Design Certified: File No. U70-24A
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Compression Fitting Size: | 1/4" |
| Compression Fitting Length: | 1-1/4" |
| Orifice: | 0.018" |
| Direction of Front Tip: | Left |
| Tip Style: | Single |
| Aeration: | Primary |
| Lead Wire Length: | 30" |
| Ignition Wire Length: | 30" |
| Pilot BTU: | 1000 |
| Used With: | SV9501 SV9600 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
4.75 out of 12 reviews
100% would recommend this product
5 star
83%
4 star
8%
3 star
8%
2 star
0%
1 star
0%
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Good product works great
The product is working great, good quality, easy to Install and I like the fact that it came with instructions on how to install the pilot.
Reason why in giving it 4 stars is that first they sent me the wrong part and had to wait extra 4 days without heat in the house until I received the right part. They were very nice on correcting the issue at no extra cost for me.
VS
Most Liked Negative Review
Not recommended for outdoor use
Product probably works fine for it's intended indoor use scenario, but I would not recommend it for outdoor fire feature usage. The design of the element lends to allowing water droplets to burn out the element. For outdoor use, I would recommend a single post element.
Showing 1-10 of 12 reviews
Good quality same as oem
Fit well.
Chris
Brockton Ma
2 months ago
Verified Buyer
Was this review helpful to you?
I would buy again from tis supply house.
It installed perfectly!
Doc
Colorado
1 years ago
Verified Buyer
Was this review helpful to you?
Great Product reasonable price.
The pilot burner and orifice worked great in fire pit.
Rocky J
Myrtle Beach SC
3 years ago
Verified Buyer
Was this review helpful to you?
Perfect fit, and Extremely fast shipping
Exact match to my furnace. Easy to install.(It comes with the instructions) Very fast shipping. Easy to navigate the website too.
JoeKidd
Detroit, MI
3 years ago
Was this review helpful to you?
Fit perfect
Pilots on smart valve seem to be a common problem .
Complete replacement is more expensive but heads off long term issues
Greg
Scottdale Pa
3 years ago
Verified Buyer
Was this review helpful to you?
I would buy this again
Well it was the perfect replacement part for my boiler
Jahja
Sayreville nj
5 years ago
Verified Buyer
Was this review helpful to you?
Good product works great
The product is working great, good quality, easy to Install and I like the fact that it came with instructions on how to install the pilot.
Reason why in giving it 4 stars is that first they sent me the wrong part and had to wait extra 4 days without heat in the house until I received the right part. They were very nice on correcting the issue at no extra cost for me.
Handyman
Rockford IL
6 years ago
Verified Buyer
Was this review helpful to you?
Excellent as always
Quality part. Did the trick.
If you need hvac or electrical parts, defiantly buy here.
I recommend Supply to everyone!
Rod
Ohio
7 years ago
Verified Buyer
Was this review helpful to you?
Perfect fit
Exactly what I needed. Works great.
Rocky
Lansing MI
7 years ago
Verified Buyer
Was this review helpful to you?
Exactly what we were looking for
Furnace part
Mike
Detroit MI
12 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: will the pilot work with propane gas
Asked by kelly 12 years ago
Add your answer
Verified Reply- Yes, the SKU:Q3450C1185 will work with LP gas.
Was this review helpful to you?
