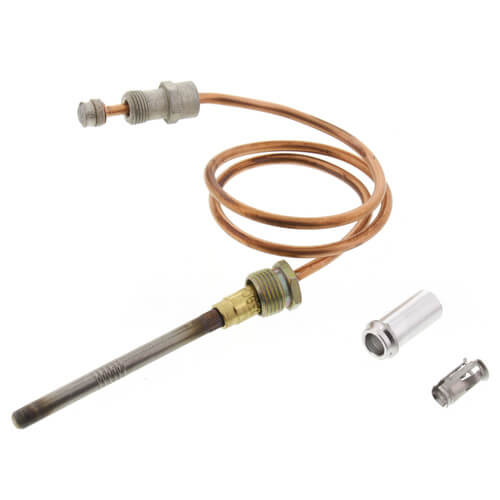

Description
  • Voltage: 30 mV
  • Connection Type: 11/32 32 Male Connector Nut
  • Lead Length (in.): 18 in.
  • Lead Length (mm): 457 mm
  • Open Circuit Output (mV): 26 mV to 32 mV
  • Resistance: 0.03 ohm
  • Temperature Ratings (F): Hot Junction 1400 F
  • Temperature Ratings (C): Hot Junction 760 C
  • Temperature Ratings (F): Cold Junction 780 F
  • Temperature Ratings (C): Cold Junction 416 C
  • Includes: Adapter and Push In Clip
  • Tradeline Value: Tradeline
  • Ref: Honeywell.com
Hide Description
Manuals (1)
Specs
Length (Inches):

18"

Voltage:

30mV

Connection Type:

11/32" 32 Male Nut

Open Circuit Output:

26 mV to 32 mV

Resistance :

0.02 ohms

Temperature Rating:

Cold Junction: 780 F

Hot Junction: 1400 F

Includes:

Adapter

Push-In Clip

×
