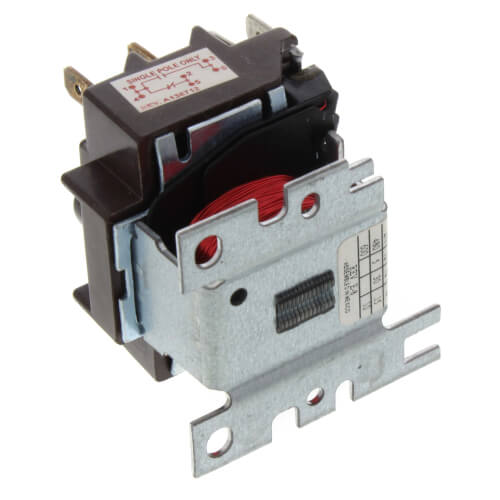

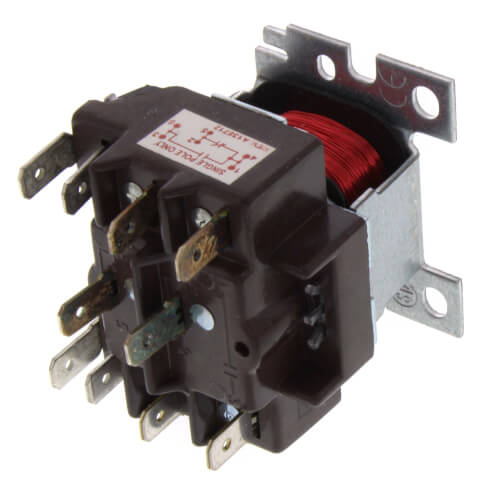

Main product image of 24v General Purpose Relay w/ SPDT Switching, R8228B1012

Hover image to zoom

24v General Purpose Relay w/ SPDT Switching, R8228B1012

Name: 24v General Purpose Relay w/ SPDT Switching, R8228B1012
Brand: Resideo
SKU: R8228B1012
Price: 47.83 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Brand:

Resideo

SKU:

R8228B1012

Rating:

(1)

Q&A:

(0)

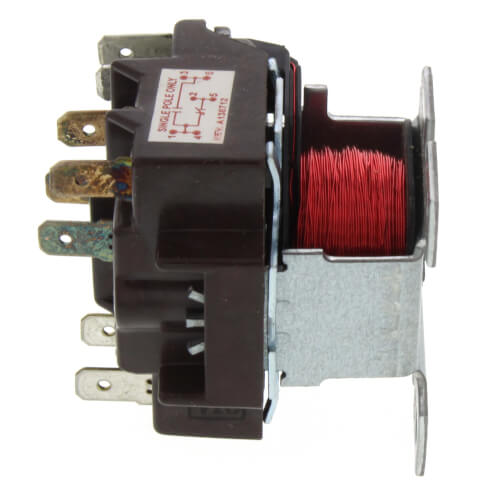

24v General Purpose Relay w/ SPDT Switching, R8228B1012

Hover image to zoom

R8228B1012 has been discontinued

Discontinued August 8, 2026

This product was discontinued by the manufacturer.

MANUALS (1)

Specification Sheet

Replacement Parts

View All

Product Highlights

–

24V

-20°F to 155°F

1-7/8"

2-3/8" Depth

Description

–

Provide heavy duty switching for refrigeration and air conditioning equipment, appliances, vending machines and similar applications.

Features

Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation.
Untaped coil assures cooler operation.
Laminated magnet construction for higher efficiency.
Base designed for easy replacement of competitive relays.
Double quick-connect coil terminals.
Plug compatible with Steveco 90-340 and Mars 90340.

Specs

–

Application:	Refrigeration Air Conditioning
Voltage:	24V
Type:	SPDT
Hertz:	50 60
Height:	1-7/8"
Width:	2-5/32"
Wiring:	1/4" Quick-Connect Terminals
Depth (Inches):	2-3/8"
Temperature Range (F):	-20°F to 155°F
Electrical Ratings (AFL):	16/18 A @ 120 VAC 5 A @ 480 VAC 18 A @ 240 VAC 12 A @ 277 VAC 18 A @ 208 VAC
Electrical Ratings (ALR):	72 A @ 208 VAC 72 A @ 277 VAC 30 A @ 480 VAC 72 A @ 240 VAC 96/72 A @ 120 VAC
Electrical Ratings (Resistive):	12.5 A @ 480 VAC 25 A @ 240 VAC 25 A @ 277 VAC 25 A @ 120 VAC 25 A @ 208 VAC
