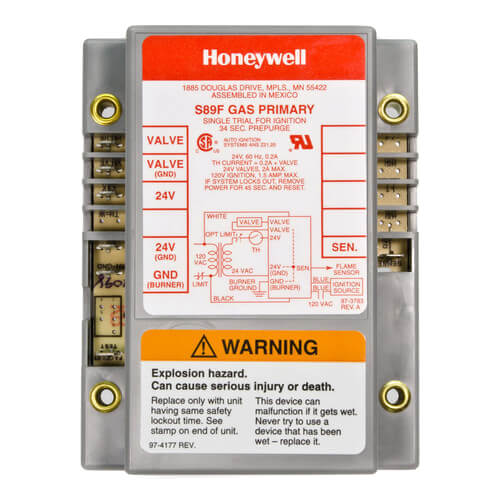

Two Rod Direct Spark Ignition Control w/ 4 Second Trial Time and Lock Out Timing, S89F1106

Provide electronic control of direct spark ignition systems, with external spark transformers, used on gas-fired furnaces, boilers, conversion burners and other heating appliances.

Features

• Controls ignition sequence and gas control operation in direct spark ignition systems.
• Control separate 120 Vac spark generator that provides high voltage potential for main burner ignition.
• Lockout after one trial for ignition if main burner fails to ignite.
• Reset from thermostat after lockout. Use separate electrodes for spark ignition and flame sensing.
• Use any 24 Vac combination gas control designed for direct spark applications and rated at 2.0A or less.

Specifications

• Description: Provide electronic control of direct spark ignition systems used on gas fired furnaces, boilers, and other heating appliances.
• Ignition System Type: Direct Spark Ignition
• Ignition Sequence: Single trial for main burner ignition (then shut down and lockout)
• Typical Gas Control: VR8205, VR8305
• Type of Gas: Natural or LP
• Ignition Source: External (120 VAC powered) High Voltage Spark Generator
• Ignition Trials To Lockout: 1
• Dimensions: 5 1/4 in. high x 4 1/16 in. wide x 1 15/16 in. long
• Electrical Ratings: 24 Vac
• Frequency: 60 Hz
• Max Ambient Temperature: -40 F to +175 F
• Flame Failure Re-ignition Time: 0.8 sec.
• Maximum Valve Load @ 24 Vac (Amps): 2A

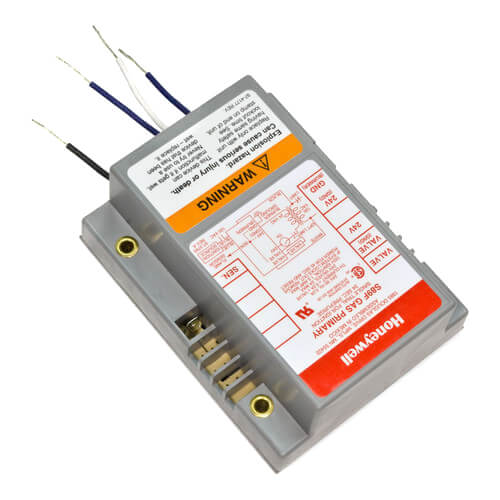

Labels appear upside down for inverted mounting
