$442.73 each
In Stock
Order by today, receive Tuesday
MANUALS (1)
This item replaces: SV9510K2158, SV9510K2133, SV9510K2166, SV9510H2228, SV9510K2141
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2"
1/2"
24V
Direct Hot Surface Pilot
Straight-Through
Description
–
Product Overview:
Product Features:
Product Specifications:

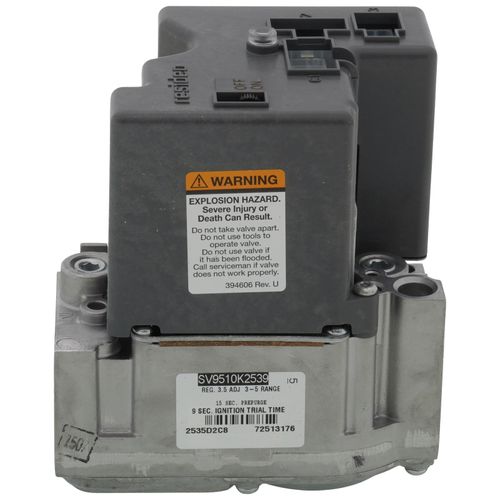

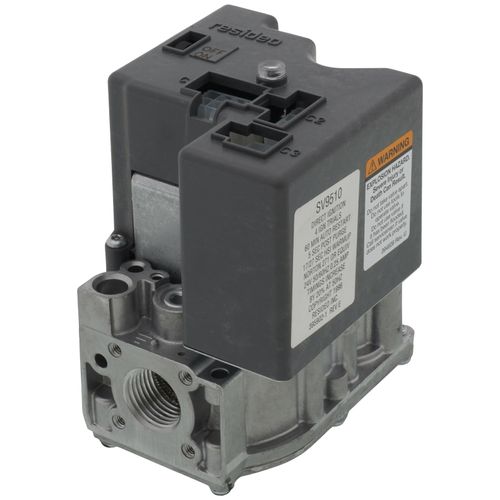

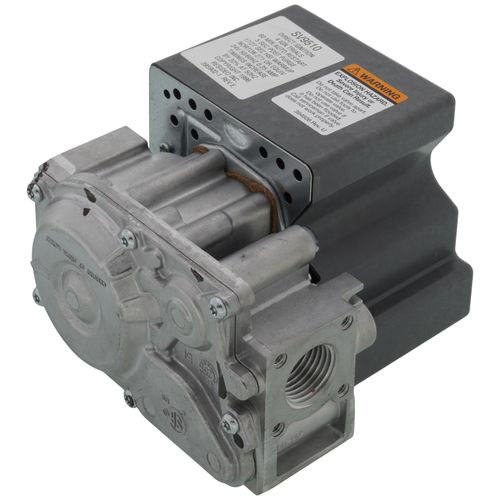

- The SV9510 SmartValve System Controls combine gas flow control and electronic direct main burner ignition sequencing functions into a single unit. The ignition source is 120V hot surface igniter lighting the main burner flame. Provides all gas ignition safety functions by controlling gas flow, ignition source, and a 120 Vac combustion air blower. The control also monitors the appliance airflow proving switch circuit and limit string to assure proper appliance operation. The SmartValve System Controls provide prepurge, postpurge and timed trial for ignition with multiple ignition trials and auto reset from lockout. Diagnostic LED indicates system status.
Product Features:
- The control communicates directly with the ST9160 Electronic Fan Timer (EFT) in typical forced warm air furnace applications
- It will also interface with the 208907 Terminal Board, providing compatibility with power-stealing thermostats. Or, it directly interfaces with the appropriate power supplies and a system thermostat for additional appliance applications
- When controlled directly by a thermostat, the control does not provide a postpurge function, as power to the control is removed when the thermostat call for heat ends
- This system is suitable for a wide range of fan-assisted combustion, gas-fired appliances including furnaces, rooftop furnaces, boilers, unit heaters, infrared heaters, water heaters and commercial cooking appliances
Product Specifications:
- Description: 1/2 in. NPT x 1/2 in. NPT Direct Hot Surface Ignition SmartValve Control with slow opening and 3.5 in. wc pressure regulator setting
- Flame Sense: Two Rod
- Type of Gas: Natural
- Ignition System Type: Direct Hot Surface Ignition
- Ignition Sequence: 17/27 sec
- Ignition Trials To Lockout: 4 trials
- PrePurge: 15 seconds
- Body Pattern: Straight-through
- Opening Characteristics (standard, step): Slow Opening
- Control Voltage (Thermostat or other call for heat): 24 Vac, 60 Hz.
- Ignition Trial Time (sec): 9 sec
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz; 50 Hz
- Flame Failure Response Time (sec): 2 sec @ 5 µA
- Ambient Temperature Range (F): -40 F to +175 F
- Ambient Temperature Range (C): -40 C to +79 C
- Dimensions (in.): 3.2 in. wide x 4.9 in. high x 4.1 in.long
- Dimensions (mm): 81 mm wide x124 mm high x 104 mm long
- Pressure Regulator Setting (psi): 3.5 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Inlet/Outlet Size (in.): 1/2 in. NPT x 1/2 in. NPT
- Maximum Capacity (ft³/hr): 200 ft³/hr
- Maximum Capacity (m³/hr): 5.7 m³/hr
- Minimum Capacity (ft³/hr): 20 ft³/hr
- Minimum Capacity (m³/hr): 0.6 m³/hr
- Maximum Capacity at 1 in. P.D. (ft³/hr): 150 ft³/hr
- Maximum Capacity at 1 in. P.D. (m³/hr): 4.2 m³/hr
- Pressure Tapping: 1/8 in. - NPT
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Includes: LP Conversion Kit
Specs
–
| Replaces: | SV9510K2166 SV9510H2228 SV9510K2133 SV9510K2158 SV9510K2141 |
|---|---|
| Fuel Type: | Natural Gas |
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Ignition Trial Time: | 9 sec |
| Inlet Size: | 1/2" |
| Outlet Size: | 1/2" |
| Ignition Type: | Direct Hot Surface Pilot |
| Ignition Trials to Lockout: | 4 |
