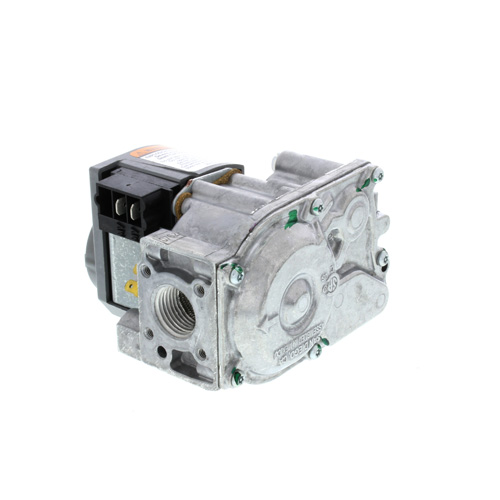

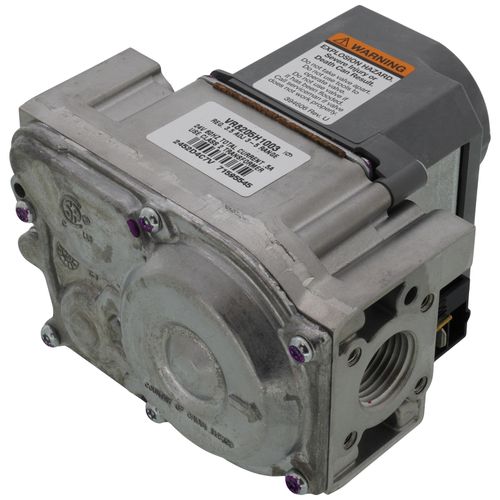

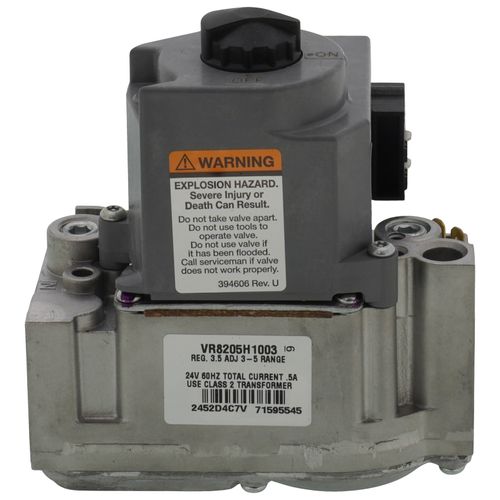

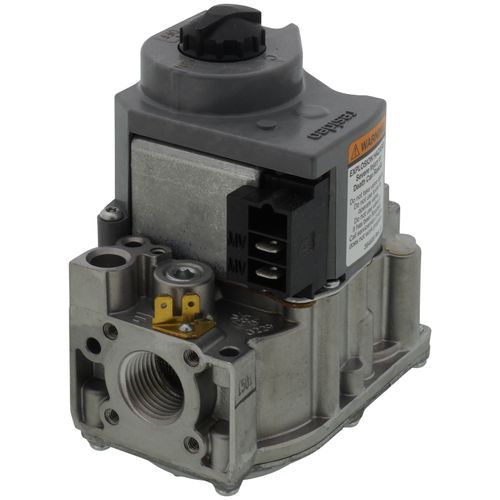

Slow Opening Dual Direct Ignition Gas Valve, VR8205H1003
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$197.83 each
In Stock
Get 12 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (5)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2" NPT, 1/2"
1/2"
150000 BTU Capacity
24V
Direct Spark Ignition
Description
–
Product Overview:
Product Features:
Product Specifications:
- Combination gas controls for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances with capacities from 20 to 200 cfh
Product Features:
- Controls include manual valve, two automatic operators, and pressure regulator
- Provide two automatic valves
- Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
- Diaphragm operated second automatic valve opens under control of the regulator; closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- Adjustments and wiring connections are accessible from top of the control
- ON-OFF lighting sequence
Product Specifications:
- Description: 24 Vac Dual Direct Ignition Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, slow opening and 3.5 in. wc pressure regulator setting
- Type: Single Stage
- Ignition Type: Direct Ignition
- Type of Gas: Natural
- Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.
- Body Pattern: Straight-through
- Opening Characteristics: Slow Opening
- Capacity @ 1 in. p.d.: 150,000 BTU/hr; 20,000 BTU/hr minimum
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Pressure Regulator Setting (psi): 3.5 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pressure Tapping: 1/8 in. NPT with plug
- Electrical Connections: 1/4 in. quick-connect male terminals
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Anticipator Setting: 0.5 A
- Temperature Range (F): 0 F to 175 F
- Temperature Range (C): -18 C to +79 C
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Dimensions (in.): 4 15/16 in. high x 4 1/8 in. wide x 2 11/16 in. deep
- Dimensions (mm): 125 mm high x 104 mm wide x 69 mm deep
- Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025006
- Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025006
- Approvals, Underwriters Laboratories Inc: UL Component Recognized
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Capacity (BTU): | 150000 |
| Ignition Type: | Direct Spark Ignition |
| Inlet Size: | 1/2" NPT 1/2" |
| Outlet Size: | 1/2" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Voltage
Capacity (BTU)
Inlet Size
Outlet Size
CURRENT ITEM
24V
150000
1/2" NPT
1/2"
1/2"
1/2"
You May Also Need
Product Reviews
4.71 out of 21 reviews
95% would recommend this product
5 star
86%
4 star
10%
3 star
0%
2 star
0%
1 star
5%
Most Liked Positive Review
Worked perfect. Recommend
This was the updated gas valve for VR8205H 8016
Perfect fit
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Stopped working after 8 months!
The valve stopped working 8 months after install. Called a different HVAC tech who just installed a "universal" valve... hopefully that one lasts longer.
Showing 1-10 of 21 reviews
Great Product!
Replaced a Honeywell VR8205H 8016 with this unit, VR8205H1003 on a Rheem furnace this morning. Shipping was fast and the valve is a perfect replacement. Working as hoped.
Homeowner
Suuth Texas
1 years ago
Was this review helpful to you?
I would buy this again from this bendor
Worked great
Tony
Elizabeth, co
5 years ago
Verified Buyer
Was this review helpful to you?
Product worked as a charm
Received quickly and installed easily and now have nice warm furnace air. Price was better than local suppliers. Thanks
DIY
West Covina. Ca.
7 years ago
Verified Buyer
Was this review helpful to you?
Supply House delivered valve ahead of promised date
Valve worked as described, easy to install, good instructions and spec. sheet.
John
Chino, ca
7 years ago
Verified Buyer
Was this review helpful to you?
The gas valve came reasonably quick installation easy.
I need a gas valve for my Gordon Ray BH 80 BTU radiant heater.
The gas valve installed with relative ease and functions perfectly as it is a Honeywell just like what the unit came with. The people at supply House.com help me identify an updated part number that was available. What do business again anytime I need parts.
Thank you supply house.com ..
Jim
New Jersey
7 years ago
Verified Buyer
Was this review helpful to you?
Great Honeywell replacement gas valve
I have a Gordon ray BH 80 cast tube radiant heater. The gas valve fail and the part number was superseded. The replacement gas valve worked very nicely ..
Jjc.
NJ
7 years ago
Verified Buyer
Was this review helpful to you?
exactly what I needed to replace my old valve.
this unit was exactly like my old VR8205H gas valve and has been working well for the past week. I had no heat for 4 days so I was grateful to get it in the next day after I ordered it. I would and will buy from this company again for all my future plumping and heating needs.
Thanks to Supply warehouse
and there team for great service.
LarryH
Greenfield, OH
7 years ago
Was this review helpful to you?
Stopped working after 8 months!
The valve stopped working 8 months after install. Called a different HVAC tech who just installed a "universal" valve... hopefully that one lasts longer.
Nick
Aberdeen, SD
8 years ago
Was this review helpful to you?
Best price
Best price. Arrived when promised. Would buy from their again.
John
Milwaukee, WI
8 years ago
Verified Buyer
Was this review helpful to you?
Yes
Was the right part fixed my problem at hafe the cost
Cathy
Weston WV
8 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
5 Questions5 Questions
Q: Will this replace a Honeywell VR8205K 1157?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffLennox part 13H41 is the recommended replacement for the obsolete VR8205K1157.
Was this review helpful to you?
Q: Will this replace the gas valve for a Rheem Classic 90 Plus Natural Gas Furnace Model#RGRA-10EZAJS/Serial#EJ5D707F440003812. The current valve is part#VR8205H1003. Thanks, Don
Asked by Don 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis valve is also listed as part VR8205H1003, so we see no reason why it wouldn't work.
Was this review helpful to you?
Q: Will this valve replace Part number VR8205h 8016 ?
Asked by Eddie 14 years ago
Add your answer
Verified Reply- PexSupply StaffRheem part 60-100394-03 is the recommended replacement for VR8205H8016.
Was this review helpful to you?
Q: Is there a 24VAC 50HZ in this model.
Asked by Rich 14 years ago
Add your answer
Verified Reply- PexSupply StaffNo, they are only available in 60 Hz.
Was this review helpful to you?
- Anonymous
For this particular model, the product page states 24VAC, but at 60HZ.
Was this review helpful to you?
Q: will this replace vr8205h 8016 model and the wire hook up
Asked by jack 14 years ago
Add your answer
Verified Reply- PexSupply StaffRheem part 60-100394-03 is the recommended replacement for the obsolete VR8205H8016.
