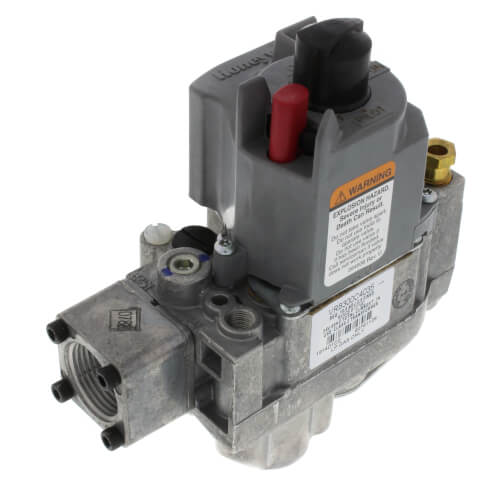

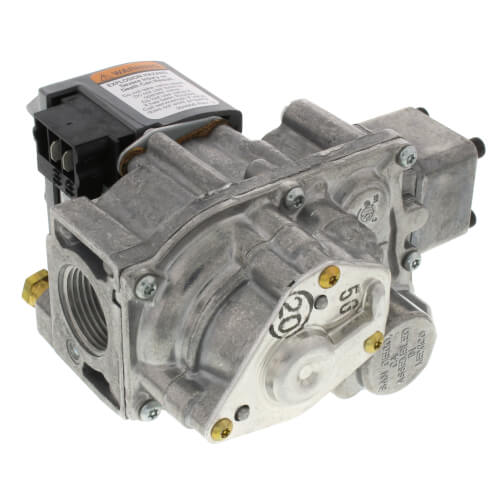

24 Vac Dual Standing Pilot Gas Valve (3/4" x 3/4" inlet/outlet), VR8300C4035
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$332.30 each
In Stock
Get 2 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (3)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Propane
3/4"
3/4"
200000 BTU Capacity
Standing Pilot
Straight-Through
Description
–
24 Vac Dual Standing Pilot Gas Valve with 3/4 in. x 3/4 in. inlet\outlet, step opening and Full Rate: 10.0 in. wc; Step Setting: 2.5 in. wc pressure regulator setting.
Overview:
Combination gas controls for use in 24 Vac, gas-fired, continuous pilot appliances with capacities from 20 to 200 cfh.
Features:
Controls include manual valve, two automatic operators, servo pressure regulator and pilot adjustment.
Use with S86F,H; S8600F,H and S8610 Control Modules.
Compact size.
Provide two automatic valves.
Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
Diaphragm operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
Meet codes requiring dual safety shutoff.
Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves.
All adjustments and wiring connections are accessible from top of control.
ON-OFF lighting sequence.
Overview:
Combination gas controls for use in 24 Vac, gas-fired, continuous pilot appliances with capacities from 20 to 200 cfh.
Features:
Specs
–
| Type: | Single Stage |
|---|---|
| Ignition Type: | Standing Pilot |
| Fuel Type: | Propane |
| Body Pattern: | Straight-Through |
| Pressure Rating: | 1/2 psi |
| Capacity (BTU): | 200000 |
| Max Temp (F): | 175°F |
| Temperature Range (F): | 0°F to 175°F |
| Min Temp (F): | 0°F |
| Inlet Size: | 3/4" |
| Outlet Size: | 3/4" |
