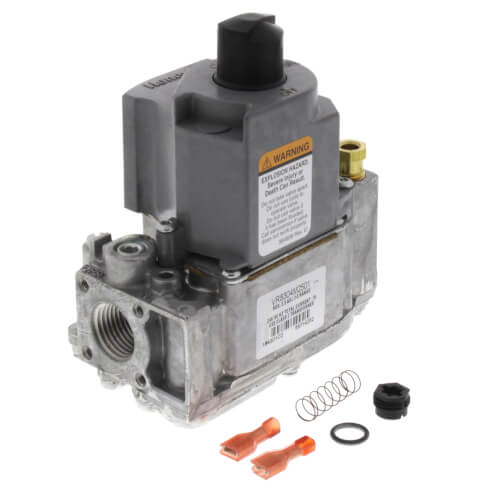

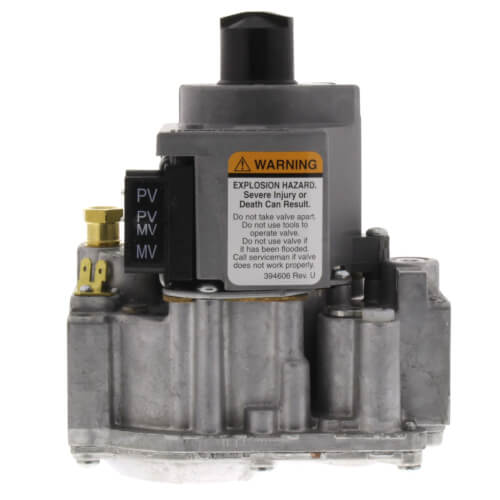

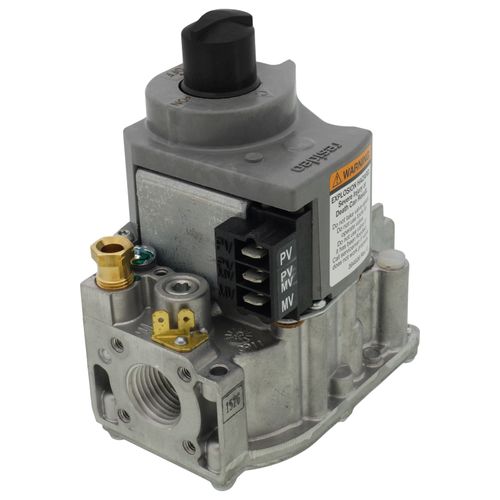

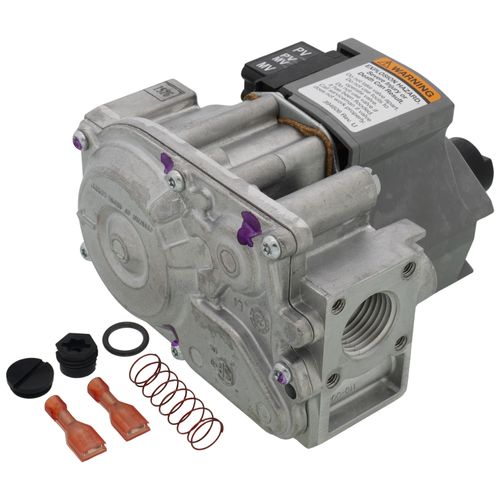

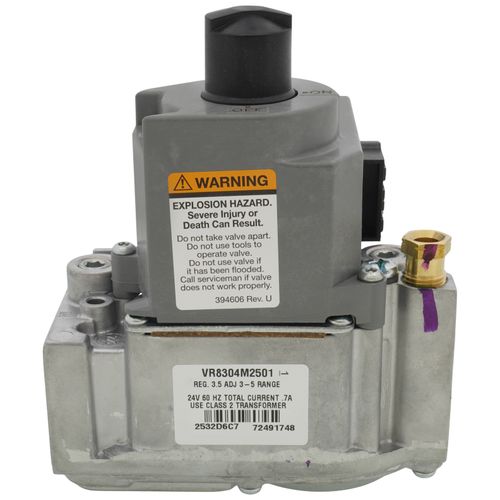

Standard Dual Intermittent Pilot Gas Valve - 1/2" x 1/2", VR8304M2501
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$302.91 each
In Stock
Get 2 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2" NPT, 1/2"
1/2"
240000 BTU Capacity
24V
Intermittent Pilot
Description
–
Product Overview:
Product Features:
Product Specifications:
- Combination gas control for use in 24 Vac, gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh
Product Features:
- Controls include safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment
- Use with S86F,H; S860D; S8600F,H; S8610 and S90A,B Control Modules
- Compact size
- Provide two automatic valves - Solenoid operated first automatic valve opens on thermostat call for heat; closes when call for heat ends, Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
- Meets codes requiring dual safety shutoff
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- Compatible with ECO connector
- ON-OFF lighting sequence
Product Specifications:
- Description: 24 Vac Dual Intermittent Pilot Gas Valve with 1/2 in. x 1/2 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
- Type: Single Stage
- Ignition Type: Intermittent Pilot
- Type of Gas: Natural
- Inlet/Outlet Size (in.): 1/2 in. x 1/2 in.
- Body Pattern: Straight-through
- Opening Characteristics: Standard
- Capacity @ 1 in. p.d.: 240,000 BTU/hr; 30,000 BTU/hr minimum
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Pressure Regulator Setting (psi): 3.5 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pilot Gas Outlet: Compression fitting for 1/4 in. OD tubing
- Pressure Tapping: 1/8 in. NPT with plug
- Electrical Connections: 1/4 in. quick-connect male terminals
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Anticipator Setting: 0.7 A
- Temperature Range (F): -40 F to +175 F
- Temperature Range (C): -40 C to +79 C
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
- Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
- Includes: 393691 Natural to LP gas conversion kit
- Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025007
- Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025007
- Approvals, Underwriters Laboratories Inc: UL Component Recognized
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Capacity (BTU): | 240000 |
| Inlet Size: | 1/2" NPT 1/2" |
| Outlet Size: | 1/2" |
| Ignition Type: | Intermittent Pilot |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
1 Question1 Question
Q: Is the Honeywell gas valve vr8304m250 suitable for a stand up millivolt thermocouple
Asked by Joe 15 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, the VR8304M2501 gas valve is not intended or designed for use with a thermocouple application. It is a 24-volt intermittent pilot valve.
