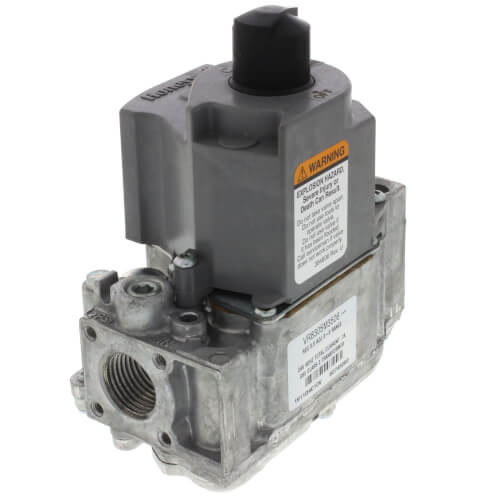

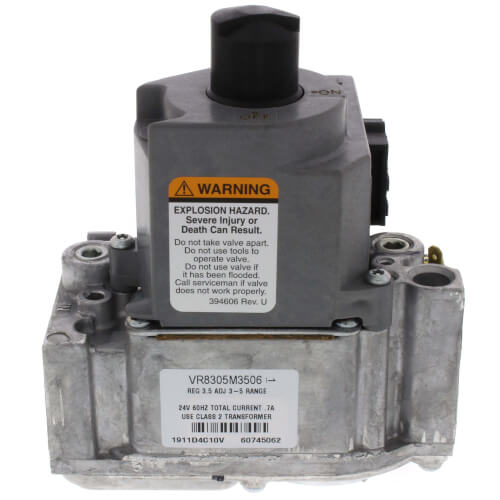

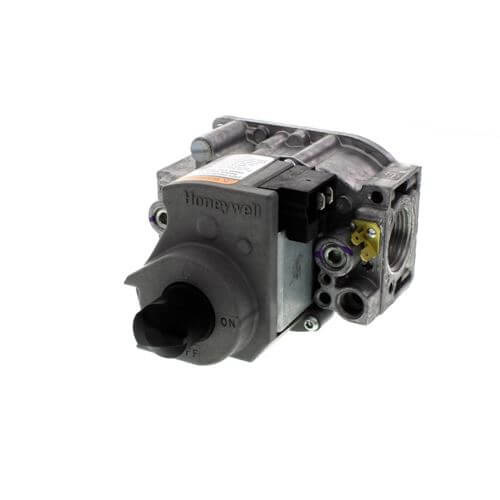

Standard Dual Direct Ignition Gas Valve - 1/2" x 3/4", VR8305M3506
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$207.87 each
In Stock
Get 4 Tomorrow, Jun 9
Order by 6PM, receive Tomorrow
MANUALS (2)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
1/2", 1/2" NPT
3/4"
270000 BTU Capacity
24V
Direct Spark Ignition
Description
–
Product Overview:
Product Features:
Product Specifications:
- Combination gas control for use with hot surface/direct spark systems in 24 Vac, gas-fired appliances, with capacities from 30 to 415 cfh.
Product Features:
- Controls include manual valve, two automatic operators, and pressure regulator
- Use with S89C,E,F and S87 series 5 and later
- Compact size
- Provide two automatic valves
- Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends
- Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted
- Meets codes requiring dual safety shut-off
- All adjustments, wiring connections and pilot outlet are accessible from top of control
- Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
- ON-OFF lighting sequence
- Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves
Product Specifications:
- Description: 24 Vac Dual Direct Ignition Gas Valve with 1/2 in. x 3/4 in. inlet/outlet, standard opening and 3.5 in. wc pressure regulator setting
- Type: Single Stage
- Ignition Type: Direct Ignition
- Type of Gas: Natural
- Inlet/Outlet Size (in.): 1/2 in. x 3/4 in.
- Body Pattern: Straight-through
- Opening Characteristics: Standard
- Capacity @ 1 in. p.d.: 270,000 BTU/hr; 30,000 BTU/hr minimum
- Pressure Ratings (psi): 1/2 psi
- Pressure Ratings (kPa): 3.5 kPa
- Pressure Regulator Setting (psi): 3.5 in. wc
- Pressure Regulator Setting (kPa): 0.87 kPa
- Pressure Tapping: 1/8 in. NPT with plug
- Electrical Connections: 1/4 in. quick-connect male terminals
- Electrical Ratings: 24 Vac
- Frequency: 60 Hz
- Anticipator Setting: 0.7 A
- Temperature Range (F): -40 F to +175 F
- Temperature Range (C): -40 C to +79 C
- Mounting: 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
- Dimensions (in.): 5 3/8 in. high x 4 1/16 in. wide x 2 11/16 in. deep
- Dimensions (mm): 135 mm high x 104 mm wide x 69 mm deep
- Includes: Natural to LP Conversion Kit, one 3/4" x 1/2" reducer bushing, one 3/4" straight flange
- Approvals, American Gas Association IAS: AGA Design Certified: File No. L2025007
- Approvals, Canadian Gas Association: CGA Design Certified: File No. L2025007
- Approvals, Underwriters Laboratories Inc: UL Component Recognized
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| Body Pattern: | Straight-Through |
| Voltage: | 24V |
| Capacity (BTU): | 270000 |
| Inlet Size: | 1/2" 1/2" NPT |
| Outlet Size: | 3/4" |
| Ignition Type: | Direct Spark Ignition |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
I would buy this product again.
This is the same product that was on the unit and works as it should.
Rick
Salina, KS
11 months ago
Verified Buyer
Was this review helpful to you?
Works great
A direct replacement for the defective original unit.
MLH
Hayden Idaho
7 years ago
Verified Buyer
Was this review helpful to you?
I will buy this gas valve again
This is the gas valve I keep on hand for Riello Gas Burner repairs
Riello Gas Burner
Dover NH
7 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Does this include the Natural to LP Gas conversion kit?
Asked by Marie 14 years ago
Add your answer
Verified Reply- PexSupply StaffThe natural gas to propane conversion kit (part 393691) is included with this valve.
Was this review helpful to you?
Q: i currently have a laars/jandy 400,000 btu pool heater that won't ignite. i believe the answer is in the gas valve. the part# on my current valve is vr83058m 4231. your site cross references the vr8305m 3506 as a replacement but the ratings are 270,000 btu. do you have a part that would match for a 400,000 btu capacity heater? thanks
Asked by fireman1 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe manufacturer recommends part VR8345M4302 as the replacement for VR8305M4231.
