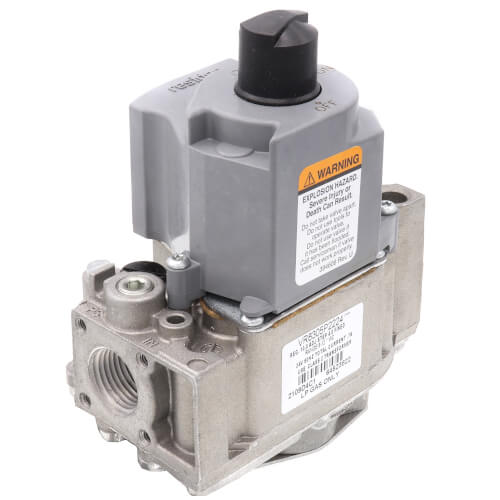

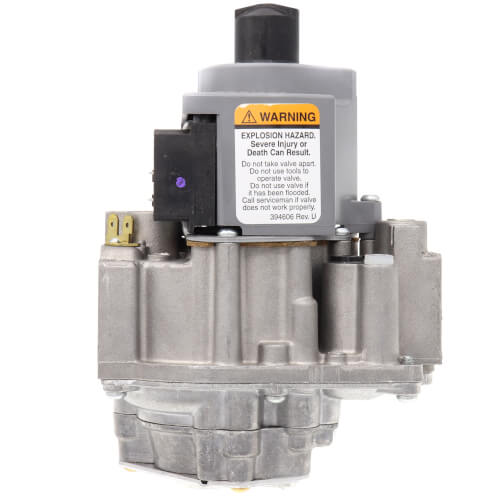

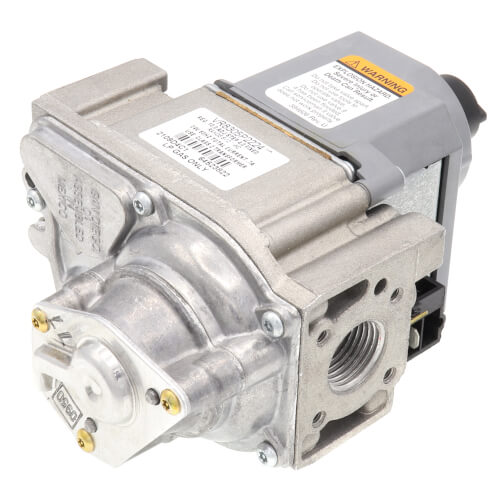

24 Vac Dual Direct Ignition Gas Valve (1/2" x 1/2" inlet/oulet), VR8305P2224
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$291.21 each
In Stock
Get 4 Wed, Jul 8
MANUALS (2)
Licensed Contractor Required
–
This product must be installed by a qualified/licensed contractor and set up with properly calibrated combustion test equipment. Failure to comply with this could result in substantial property damage, severe personal injury or death.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/2"
1/2"
Direct Spark Ignition
Straight-Through
1/2 psi
175°F Max Temp
Description
–
Overview:
Combination gas control for use in 24 Vac, gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
Features:
Controls include manual valve, two automatic operators, and pressure regulator.
Use with S89C,E,F and S87 series 5 and later.
Compact size.
Provide two automatic valves.
Solenoid-operated first automatic valve opens on thermostat call for heat; closes when call for heat ends.
Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted.
Meet codes requiring dual safety shut-off.
All adjustments, wiring connections and pilot outlet are accessible from top of control.
Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure.
ON-OFF lighting sequence.
Combination gas control for use in 24 Vac, gas-fired, intermittent pilot appliances with capacities from 30 to 415 cfh.
Features:
Specs
–
| Type: | Single Stage |
|---|---|
| Ignition Type: | Direct Spark Ignition |
| Body Pattern: | Straight-Through |
| Pressure Rating: | 1/2 psi |
| Max Temp (F): | 175°F |
| Min Temp (F): | -40°F |
| Temperature Range (F): | -40°F to 175°F |
| Inlet Size: | 1/2" |
| Outlet Size: | 1/2" |
