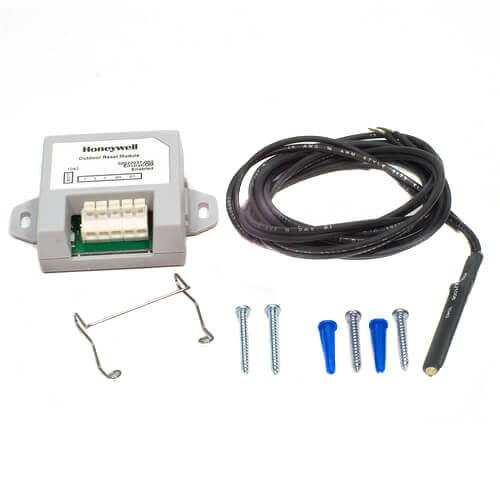

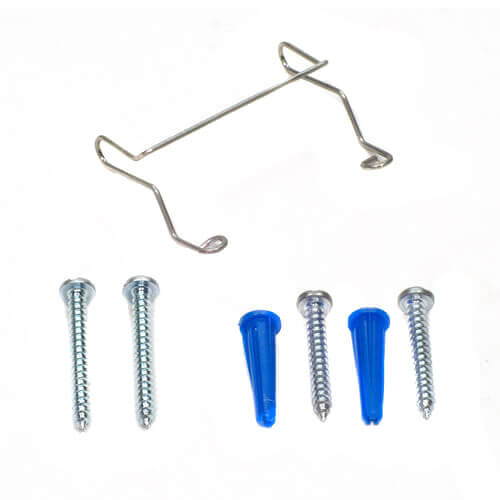

Outdoor Reset Module for L7224/L7248 Series 2 (Includes Outdoor Sensor), W8735S1000
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
L7248 Series, L7224 Series
24V
Wall
Description
–
Features:
- Electrical Ratings: 24Vac, 60Hz
- Dimensions (in.): 2.410 in. high x 3.385 in. wide x .920 in deep
- Mounting: Wall Mounted in any orientation
- Operating Humidity Range (% RH): 0 to 95% RH, non-condensing
- Maximum Ambient Temperature (F): 150 F
- Maximum Ambient Temperature (C): 66 C
- Minimum Ambient Temperature (F): -30 F
- Minimum Ambient Temperature (C): -9 C
- Includes: C7089U1006 Outdoor Sensor
Specs
–
| Application: | Accessory |
|---|---|
| Used With: | L7248 Series L7224 Series |
| Voltage: | 24V |
| Frequency: | 60 Hz |
| Mount: | Wall |
| Operating Humidity: | 0% to 95% (non-condensing) |
| Max Ambient Temp (°F): | 150°F |
| Min Ambient Temp (°F): | -30 F |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
1 Replacement Part
VisionPRO Outdoor Temperature Sensor
SKU: C7089U1006
Honeywell Home
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
5 out of 3 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Showing 1-3 of 3 reviews
aquastats used with the add-ons
NOTE:THESE 3 PRODUCTS CAN BE PURCHASED IN A KIT ALL AT ONCE!!!YOU WILL SAVE $$$... the electronic aquastat is a nice item and is fully adjustable for every situation!!! but may need to be set 10-degrees higher than your old aquastat to maintain the same heat range...the outdoor reset kit works great!!!but you will not have any hot water for the shower if you do not use the DOMESTIC HOT WATER KIT!!! YOUR HEATER WILL BE OPERATING AT A LOWER TEMP-RANGE WHEN THE OUTDOOR KIT IS ACTIVE!!! SO YOU WILL NEED THE HEATER TO RETURN TO THE FULL-TEMP RANGE WHEN YOU START RUNNING THE SHOWER!!! THAT IS WHAT THE DOMESTIC HOT WATER KIT IS NEEDED FOR!!! WARNING- DO NOT SET THE RESET-OUTDOOR TEMP LOWER THAN 45-DEGREES...IT WILL TAKE TO-LONG FOR YOUR HEATER TO RECOVER FROM A LOWER BOILER TEMPERATURE!!! THESE NEW HEATER CONTROLS ARE GREAT BUT REQUIRE SOME READING TO UNDERSTAND EXACTLY HOW THEY WILL WORK!!!
HOT WATER USER
PA. EAST COAST USA
12 years ago
Verified Buyer
Was this review helpful to you?
Good Price Works Well
I purchased this module for the "Warm Weather Shutdown" feature. I did not want the boiler to be heating the water when the thermostat did not call for heat. This device solved that problem. Keep in mind it can only be used with an electronic Aquastat, such as the one at the link below.
T Mason
Grove City, PA
14 years ago
Was this review helpful to you?
Saves Energy
Great device which works with my L7248 control to adjust boiler water temperature based on outside air temperature. Lower water temperature means $ savings
Joe
Rock Hill, NY
16 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: is this product compatible with the l7248a,c,l aquastat?
Asked by george 14 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, the L7224A,C ; L7248A,C,L models are compatible with the outdoor reset module and the domestic hot water module.
Was this review helpful to you?
-
look at the terminal strip on the aquastat for the terminals marked 123 for enviracom connections. if they are present, you are good to go.
Was this review helpful to you?
-
According to the installation instruction it will work with L7224/48. I have a L7224U, my suggestion is look for an installation manual online for the L7248and see if it lists the rest in the accessories list.
Was this review helpful to you?
Q: I have an older boiler which when left on in warm weather will continue to heat the water in the boiler even when there is no call for heat from the thermostat. I have installed the L7224U1002 Electronic Aquastat. If I install this module will it enable me to have the burner stay off in warm weather?
Asked by T Mason 14 years ago
Add your answer
- Another PexSupply Customer
Yes, that is one of the functions of the outdoor reset device. However, it must be installed with the correct aqua-stat. It works very well to save money. -Scott
Was this review helpful to you?
- Another PexSupply Customer
Yes, you can. Just install the outdoor temp reset module and read through the programming on page 5 to set the warm weather shutdown to the outdoor temp you would like it to shutdown. Or, if your boiler can do a cold start mode, then set the low limit to OFF.
Was this review helpful to you?
