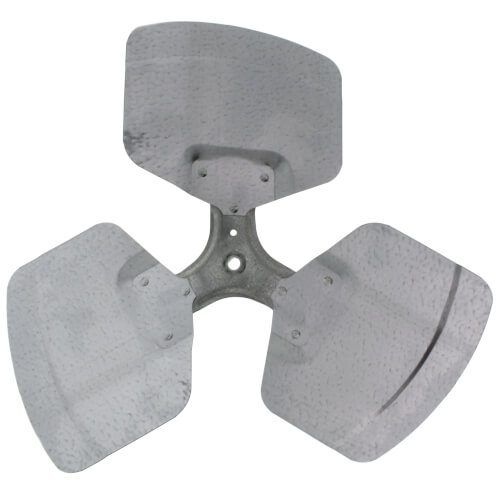

20" Galvanized Steel 3 Blade Fixed Hub Fan Blade, CW (26° Pitch)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$82.40 each
In Stock
Get 3 Tue, Jul 7
Order by today, receive Tuesday
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
CW
20" Diameter
Galvanized Steel
Description
–
20" Galvanized Steel 3 Blade Fixed Hub Fan Blade, CW (26° Pitch)
Specs
–
| Product Type: | Fan Blade |
|---|---|
| Rotation: | CW |
| Bore: | 1/2" |
| Diameter (Inches): | 20" |
| Material: | Galvanized Steel |
| Hub Location: | Intake |
| Number of Blades: | 3 |
| Pitch: | 26 |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4.25 out of 4 reviews
75% would recommend this product
5 star
75%
4 star
0%
3 star
0%
2 star
25%
1 star
0%
Showing 1-4 of 4 reviews
Great fan for olde Amana/Goodman. Pairs with new ⅓ HP motor.
The motor on our 30 year old Amana outdoor condenser was failing. Our local HVAC guy would not touch it because of age. I decided to get a new fan blade as well and had to search for a clockwise blade (CW 0.500" shaft) to match the new CCW motor.
(Motor -- Goodman Parts D6924411Q). No clue why the CCW motor needs a CW fan blade but our motor hangs down from the top and pulls air out. O.K. fine. This new fan blade is quieter and blows about 50% more air than the old one. The new motor is 1/ 3 HP vs the old motor which was 1/ 10 HP. New pulls a little more current (7.1 amps vs 6.8 amps; all good. Eventually plan to check power factor to see if I need a capacitor upgrade. Alternately need a better HVAC guy.
Nits - New fan only has one set screw, does not seem to matter. Checked capacitor and contactor before doing work and all good. FYI had to change one motor wire clip to fit the old contactor.
Retired engineer
Massachusetts
2 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Out of balance
This was nearly a direct replacement for the original fan. The difference was that the original fan had aluminum blades (which cracked over the years due to stress hardening) and this fan had galvanized blades. Everything looked good except that the fan was out of balance. It had weights on it as if it had been balanced, but it still vibrates like crazy! I had screwed the original blade back together to keep things running until this one arrived. Even with a screw in it, the original was more balanced and ran much smoother. What the heck! If it has balance weights on it, someone had to have at least tried to balance it...
Dr. Dave
Vernon, TX
5 years ago
Verified Buyer
Was this review helpful to you?
I recommend my friend to purchase a blower motor
Fan blade was OEM perfect fit and runs smooth no vibration. I will buy more ac parts when needed.
Phil
Florida
6 years ago
Verified Buyer
Was this review helpful to you?
Just like I did
It work like a factory replacement
Jim
Sebring fl
8 years ago
Verified Buyer
Was this review helpful to you?
