Description
–

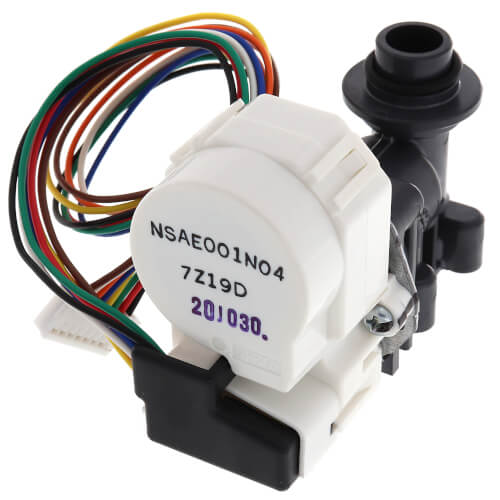

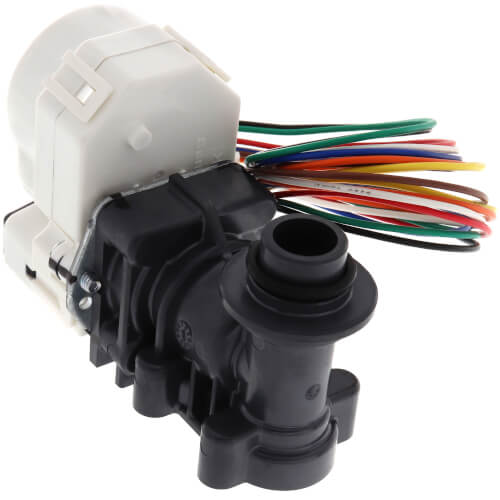

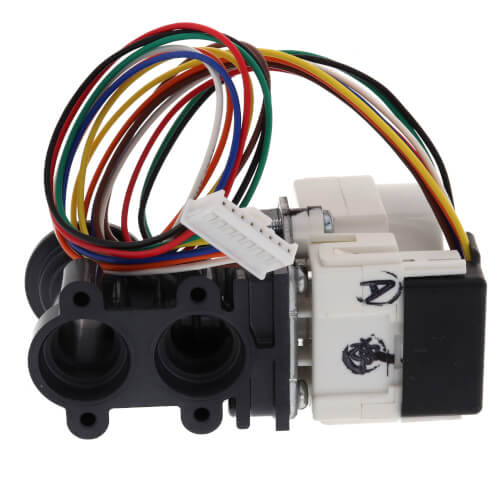

Rheem RTG20235X Bypass Assembly
An OEM bypass assembly used on compatible Rheem tankless water heater systems to replace the specified bypass assembly when service is required.
Key Features:
Compatibility & Applications:
Installation & Operation Notes:
Maintenance & Troubleshooting:
User Reviews & Q&A Summary:
An OEM bypass assembly used on compatible Rheem tankless water heater systems to replace the specified bypass assembly when service is required.
Key Features:
- OEM Bypass Assembly
- SupplyHouse notes this item replaces RTG20164M
- Rheem describes it as an OEM genuine factory authorized part
- Rheem lists a robust design
- Rheem lists a 1-year limited warranty
- Rheem indicates the kit includes: Bypass Assembly
Compatibility & Applications:
- Listed in the Rheem tankless water heater parts category (as listed on the retailer page)
- Must only be used where the manufacturer specifies this exact part number: RTG20235X
Installation & Operation Notes:
- Installation should be performed by a qualified technician.
- Rheem states that water heater parts and accessories should only be installed by qualified technicians and warns that failure to follow manufacturer instructions may result in hazards including fire/explosion, electric shock, property damage, injury, or loss of life (manufacturer safety statement).
- Refer to the water heater's service/installation manual for the correct replacement procedure, required shutdown steps, and post-repair checkout.
Maintenance & Troubleshooting:
- This is a service replacement part typically used when the existing bypass assembly is damaged or no longer functioning correctly.
- Customer feedback commonly associates replacement with correcting issues tied to cracking/leaks and restoring the unit to normal operation.
- The provided sources do not include diagnostic procedures; confirm the failure and correct part number using the unit's service documentation before replacement.
User Reviews & Q&A Summary:
- Fit/compatibility themes: reviewers frequently describe it as an exact fit and identical replacement, with multiple reports of the water heater being "back up and operational" after installation.
- Common failure/repair themes: several reviews mention replacing the bypass assembly due to hairline cracks (including winter-related damage) or leaks, and note it resolved the issue.
- Substitution note from reviews: one reviewer reports using RTG20235X successfully as a substitute where RTG20164M was previously used and is no longer available, noting matching body/stepper motor details in their repair experience.
