Description

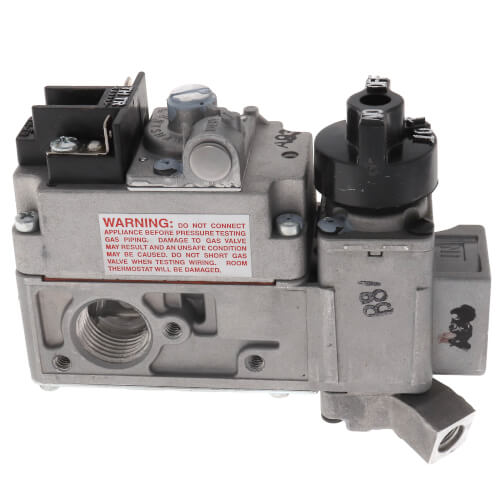

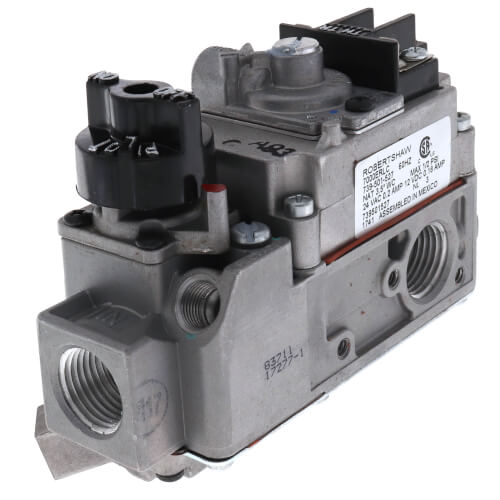

The 710 low capacity gas heating valves are designed for recreational vehi- cles and other applications with limited space. All models include a manual valve (gas cock), automatic pilot safety valve, pilot outlet, pilot gas filter and pilot adjusting key. THE CONTROL CAN BE MOUNTED IN ANY POSITION EXCEPT UPSIDE DOWN AND ALL MODELS HAVE 3-POSITION OUTLETS. Consult ordering chart for individual control specifications. NOTE: Regulated 710 series gas valves can be converted from natural to L.P. gas by using the replacement pressure regulators shown on page C25.

Features
  • Valve Type: 24 VOLT MODEL 7000ERLC
  • Pilot outlet: 1/4" tubing
  • Gas cock dial marking: off-pilot-on
  • Maximum ambient temperature: 175°F
  • Maximum capacity: Natural Gas 70,000
    L.P. Gas 112,000
  • Maximum inlet pressure: 14" W.C. (1/2 PSI)
  • NOTE: For 12 VDC applications use 24 volt models.
Hide Description
Manuals (1)
Specs
Fuel Type:

Natural Gas

Inlet Size:

1/2"

Outlet Size:

1/2"

Capacity (BTU):

70000

Pressure Reg Setting:

3.5" W.C. NAT. GAS

Application:

Wall Furnaces

×
