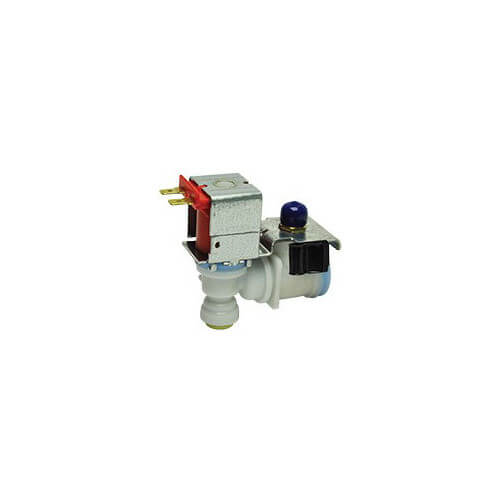

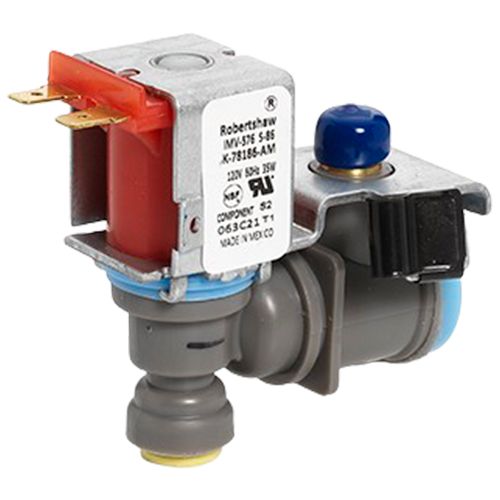

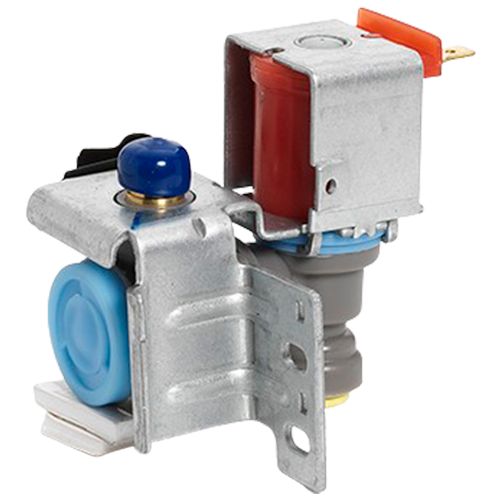

S-86 Ice Machine Water Valve (120V)

The Robertshaw® S-86 Single and N-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.

Features:

• Direct acting armature provides high flow capacity with minimum power requirements
• Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
• Unique armature and seat design reduce unwanted particles from entering the armature area
• Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
• Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
• Suitable for applications using water at temperatures up to 160°F (71°C)

Specifications:

• Series Application Residential Ice Machine Water Valve S-86
• Electrical Rating 120V AC, 60 Hz, 35W
• Body Material Polypro
• Inlet Size 1/4" flare, loxit or compression
• Operating Pressure 20 PSI to 120 PSI
• Outlet 7/16" 20 UNF
• Terminals 1/4" Male
• Flow Rate 0.06 GPM to 0.60 GPM
• Replaces Whirlpool 2315576, Whirlpool 2315508, Whirlpool W1048974, Whirlpool 4318047
