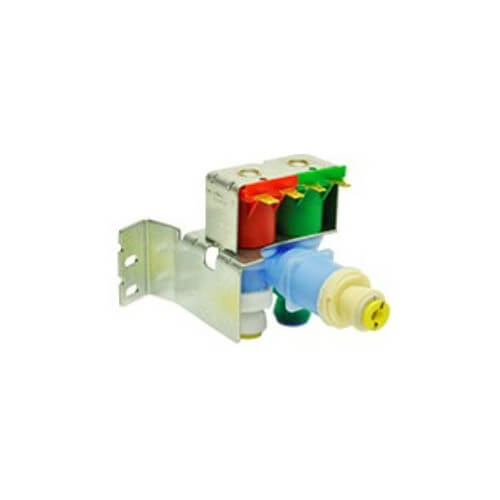

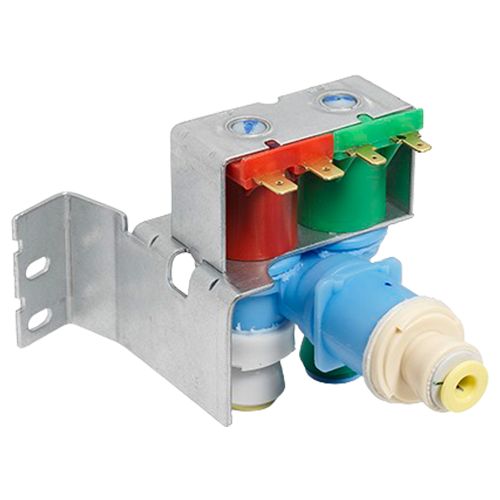

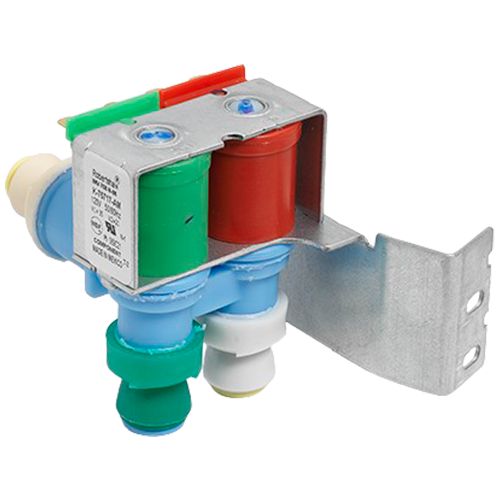

N-86 Ice Machine Water Valve (120V)

The Robertshaw® S-86 Single and N-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.

Features:

• Direct acting armature provides high flow capacity with minimum power requirements
• Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
• Unique armature and seat design reduce unwanted particles from entering the armature area
• Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
• Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
• Suitable for applications using water at temperatures up to 160°F (71°C)/ul>
  Specifications:
  • Series Application Residential Ice Machine Water Valve N-86 Dual
  • Electrical Rating 120V AC, 50/60 Hz, 35W|120V AC, 50/60 Hz, 20W
  • Body Material Polypro
  • Inlet Size 1/4" flare, loxit or compression
  • Operating Pressure 20 PSI to 120 PSI
  • Outlet 7/16" 20 UNF|1/2" 20 UNF
  • Terminals 1/4" Male|3/16" Male
  • Flow Rate 130 CC in 7.5 seconds, 22-38 CC per second
  • Replaces Whirlpool 2188708
