Description

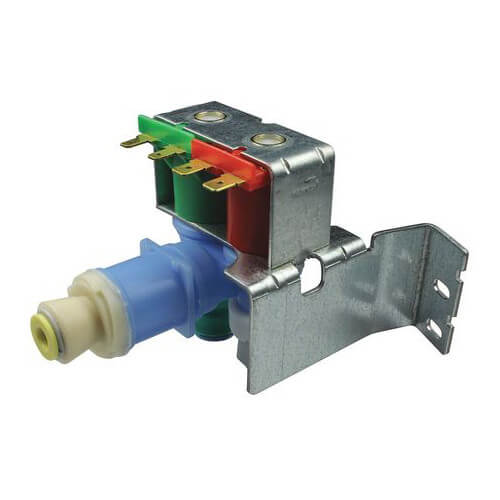

The Robertshaw® N-86 dual Water Valve Series is an automatic icemaker valve for residential refrigerator icemakers. Features an inlet fitting which connects directly to 1/4" (6.35mm) tubing without an additional adaptor. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.

Features:
  • Direct acting armature provides high flow capacity with minimum power requirements
  • Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
  • Unique armature and seat design reduce unwanted particles from entering the armature area
  • Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
  • Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
  • Suitable for applications using water at temperatures up to 160°F (71°C)
Read more
Specs
Application:
Ice Machines
Voltage:
120v
Inlet Size:
1/4"
Outlet Size:
1/2"
7/16"
Max Pressure (PSI):
120
Min Pressure (PSI):
20
Material:
Polypropylene
Flow Rate (GPM):
0.75
Outlet Type:
20 UNF
Inlet Type:
Flare
Wattage:
20
35
×
